Parallel Mount Kit
June 1, 2014

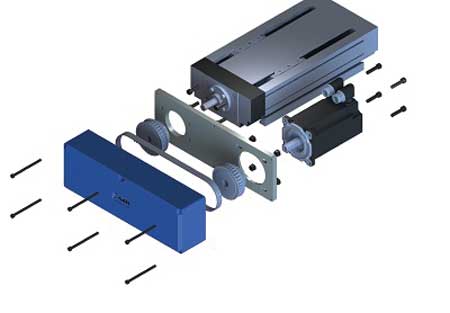

GAM Gear offers the (PMK). The PMK is designed to enable virtually any motor to be connected in parallel to any linear ball screw actuator, regardless of manufacturer. According to the company, when there are space constraints on a machine design, the PMK can help save space compared to a typical inline motor mount configuration because the motor is to the side of the actuator.
Available in four standard frame sizes from 3" up to 6" (based on effective height), the PMK has maximum output torques from 2.4 Nm up to 46 Nm in a 1:1 pulley transmission ratio. The cover plate is machined from aircraft grade aluminum for high durability and then anodized for further protection. The pulleys feature conical taper bushings for enhanced clamping forces and are connected with a high torque rubber timing belt for smooth operation. All PMKs are designed for universal mounting, which means they can be installed either horizontally or vertically without further specification. The smallest size PMK (31) comes standard with a bearing support assembly that protects the ball screw shaft and bearings from radial loading associated with the belt tension.
For more information contact:
GAM
901 E. Business Center Drive
Mount Prospect, IL 60056
847-649-2530
www.gamweb.com
