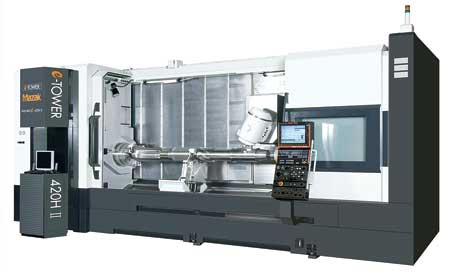

Designed for a wide variety of industries, including construction machinery, marine and energy, the INTEGREX e-420H II combines the abilities of a high-powered turning center and full-function machining center to productively turn, mill, bore and drill, while offering 5-axis simultaneous machining, according to Mazak. The machine fits into Mazak's Done-In-One category for being able to incorporate all processes from raw material input through final machining, which reduces production lead times, improves machining accuracy and lowers operating expenses.
The INTEGREX e-420H II employs a headstock with an 8", a 12" or a 15" chuck and 3.6" diameter bore mounted on a 40 HP, 4,000 RPM integrated spindle motor designed to bring high output and high torque to a range of applications. The C-axis, which indexes in 0.0001° increments, features a brake mechanism and direct magnetic detector to provide high positioning accuracy.
A 30 HP, 12,000 RPM integral motor milling spindle that rotates 240° in the B-axis enables the INTEGREX e-420H II to perform simultaneous 5-axis and high feedrate milling operations. A variety of tool magazine capacities, from the standard 40 tools to the optional 80 or 120 tools, offer versatility in the shapes and sizes of tools that can be stored to further support multitasking part processing operations. To help ensure the safe and accurate machining of long workpieces, the INTEGREX e-420H II pairs with an optional steady rest.
The INTEGREX e-420H II provides a maximum swing of 26.38" and a 16.54" Y-axis. Longer workpieces are also handled in the machine's standard bed length of 60" or optional bed length of 120".
Axis travels on the INTEGREX e-420H II incorporate Mazak's MX Hybrid Roller Guide System that is designed to increase vibration dampening, extend tool life, handle higher load capacities and eliminate tramp oil in the coolant by utilizing a greener grease-based lubrication system.
"The INTEGREX e-420H II features Mazak's MATRIX 2 CNC control designed specifically for optimized 5-axis machining," said a company spokesperson. "Within the control are both enhanced hardware and software functionalities that make the control easy to use while also delivering high accuracy and increased productivity." According to Mazak, control hardware performance is faster with higher processing speeds for small increment operation. Furthermore, a 5-axis spline interpolation function included in the control's software provides smooth toolpaths from long block-by-block programs, easy tool vector control and shorter cycle times as well as enhanced 5-axis surface finishes.
For increased machine utilization, the INTEGREX e-420H II is compatible with several forms of automation, such as bar feeders, gantry loaders and articulating robots.
