An Expansion to TetraMini-Cut Opens Its Door to General Grooving



Tungaloy Corporation has broadened its TetraMini-Cut series - the grooving tool range for Swiss-type machines - to include new insert lines, extending its grooving benefits with CNC lathes and turning centers.

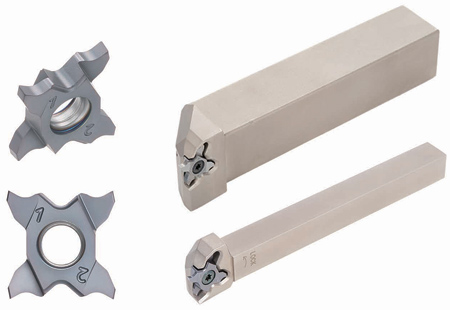

TetraMini-Cut features a compact four-cornered insert that is securely clamped in an innovatively designed pocket for indexing repeatability and tool life stability.

The TetraMini-Cut series for the general lathe market now includes two new chipbreaker styles, each with optimal cutting-edge features. The new TCG style chipbreaker incorporates optimized rake angle and edge preparations, benefiting manufacturers in all industry segments, especially automotive. The TCP style chipbreaker features a large rake angle with a sharp cutting edge. Its maximum depth of cut is now extended to 3.5 mm (0.14") from the conventional 2.5 mm (0.01") for greater range of applications. To meet the requirements from small and miniature part manufacturers who are grooving with R0.1 mm (R0.004") or smaller, the TCP line also includes inserts with R0.05 mm (R0.002") corner radii.

The extended TetraMini-Cut line also includes the AH7025 grade featuring a nano-multilayer PVD coating with high aluminum content for cutting various materials, while minimizing chipping, fractures and plastic deformation on the cutting edge, which are common issues during grooving.

For more information contact:

Tungaloy America, Inc.

3726 N. Ventura Dr.

Arlington Heights, IL 60004

888-554-8394

info@tungaloyamerica.com

www.tungaloyamerica.com
