Thread Locking Technology for Safety Critical Manufacturing Applications



Emuge Corp. has announced its thread making tool is available in a SELF-LOCK integrated locking system. "Emuge SELF-LOCK threading tools offer a high quality alternative in thread locking for vital safety applications in aerospace, medical, communications, transportation industries and more," said a company spokesperson.

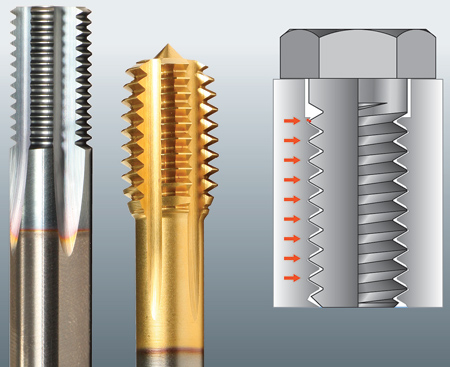

The thread locking feature is integrated in the internal thread, and has a modified profile with a 30° ramp surface in the direction of stress which provides the self-locking effect. In an ideal screw connection for high-stress situations, where there is a standard external thread in an Emuge SELF-LOCK internal thread, the internal thread yields a self-locking screw connection that can be used repeatedly.

"The special profile of the SELF-LOCK thread allows an even distribution of stress over the entire thread length and therefore eliminates slippage," said Mark Hatch, Product Director at Emuge Corp. "We are pleased to offer such a safety critical threading solution which results in no stripping of threads and is cost-effective because no additional components are necessary."

"The Emuge SELF-LOCK internal thread shows constant, maximum holding power under dynamic stress," said the spokesperson. "Functions remain in good operation even with repeated loosening and re-tightening of the thread connection." This locking effect is caused by the ramp-shaped surface integrated into the thread profile.

SELF-LOCK technology is designed to result in increased threading tool life for larger thread hole diameters and provide larger tolerances for thread hole diameters. Assembly is easy with no assembly errors possible such as forgetting the locking device. To gauge SELF-LOCK threads, Emuge recommends using its two-piece gauge system which corresponds to the usual combination of a go/no-go gauge.

Emuge SELF-LOCK threading tools are designed to work with standard external threads (screws) with tolerance class "medium." Internal threads can be produced with Emuge taps, cold forming taps or thread mills.

For more information contact:

Mark Hatch, Product Director

Emuge Corporation

1800 Century Drive

West Boylston, MA 01583

800-323-3013 / 508-595-3600

mark.hatch@emuge.com

www.emuge.com/products/taps/self-lock-taps
