Panel Cut Tooling Allows High Feedrates

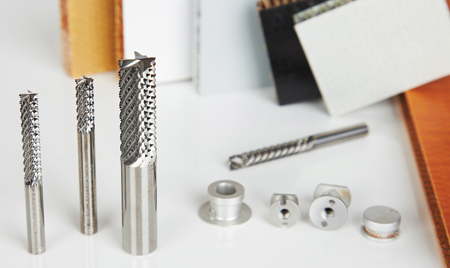

Controx offers the Panel Cut line of tooling which allows feedrates up to 400 IPM for maximum productivity and a clean surface finish. Designed specifically for machining lightweight composite sandwich panels, these shank tools employ enhanced tool geometry to drill through sandwich panels with no delamination on the glass or carbon fiber skins or flagging of the honeycomb in between. A special tooth design with stabilized tips provides increased tool life. Additional relief on router tips provide added strength and aggressiveness for demanding materials like Nomex, Kevlar and aluminum. They are ideal for profiling operations as well as drilling.

Available in solid carbide, Controx stocks the panel cut in 1/4" and 1/2" diameters (+/- 0.0005"), and in 5/8" and 1-1/4" lengths of cut so that panel sizes up to 1-1/4" can be accomplished in one pass.

In addition to standard Panel Cut tooling, Controx also stocks a tool with an enhanced tool geometry for aluminum skinned sandwich panels.

For more information contact:

Controx, Inc.

5776 Urbana Road

Springfield, OH 45502

937-325-2888 / 800-558-8966

solutions@controx.com

www.controx.com
