Non-Cylindrical Grinding Machine

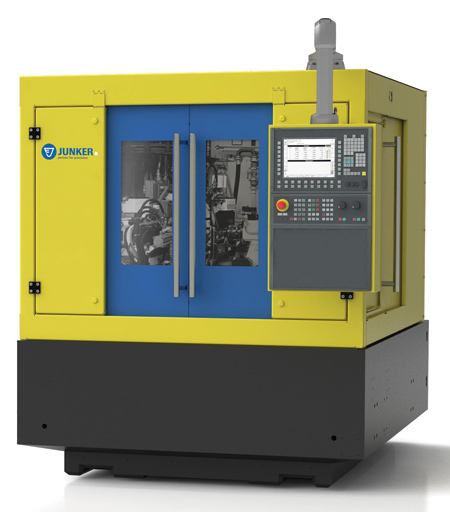

The non-cylindrical grinding machine JUCAM 1S from JUNKER grinds cam pieces and single cam packages with precision and efficiency.

With its technology and minimal downtimes, the JUCAM 1S from JUNKER enables the economical production of cam pieces.

"The JUCAM 1S from JUNKER specializes in the ultra-precise, efficient grinding of cam pieces," said a company spokesperson. "With its technology and minimal downtimes, this machine maximizes economical production."

The nerve center of the JUCAM 1S is a double work head with two clamping fixtures. It can be swiveled 180° to a precisely defined end position. The workpiece transfers from its initial loading position to the grinding position using a fully automated process. Concurrently, the second workpiece transitions from the grinding to the discharge position which reduces downtime.

JUNKER's JUCAM 1S enables automotive manufacturers and suppliers to achieve economical cam piece grinding. The JUNKER non-cylindrical grinding machine also specializes in the efficient package grinding of single cams.

When grinding cam pieces, the precise angular reference to the inner toothing is essential. Accordingly, the JUCAM 1S clamps the cam pieces with an inner clamping mandrel. "An intelligent control system compensates automatically for material deviations or disturbing variables such as fluctuations in temperature, guaranteeing that all components conform to a constant standard," said the spokesperson.

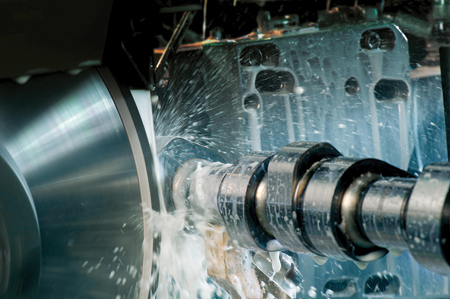

CBN, in a range of specifications, is used as an abrasive for maximum repeat accuracy, extended service life and high stock removal performance. Depending on the application, the grinding wheels are comprised of a carbon base body: it is lightweight, possesses vibration-damping properties and remains dimensionally stable even at high speeds.

For more information contact:

Erwin Junker Machinery, Inc.

2541 Technology Drive, #410

Elgin, IL 60124
