Indexable Punch Broach Tooling Offers Simple Set-Up

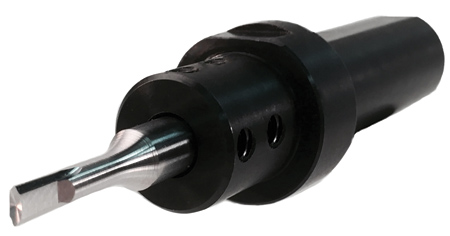

Slater Tools range of indexable punch broaches and holders offer performance and economy for machining of numerous shapes, even in difficult materials.

Slater Tools offers a range of indexable punch broaches and holders to machine shapes in workpieces where rotary broaching may not be feasible. Such cases include greater depth of operation, tough materials, tooth height, chip evacuation challenges and applications that require orientation.

Punch broaches are available to machine keyways, hexagons, Torx-style six lobes, serrations, splines and squares. "In combination with the range of punch broach holders, users can expect high repeatability on lathes, milling machines and presses, even in tough applications. Punch broaching can also offer an economic advantage over alternative methods of shape making," said a company spokesperson.

Slater's indexable punch broach holders facilitate the process by using partial form broach tools and indexing either the tool or the workpiece, which in turn reduces cutting pressure. This method of broaching is most beneficial for applications requiring no witness (pre-drill) marks, with excessive material removal or where timing the form to a feature on the part is required.

"It is important to us as a company to offer solutions, such as indexable punch broaches, for applications where the rotary broaching process is not a viable option," stated Jeff Tryles, Sales Manager, Slater Tools.

The holders feature a rigid design with standard shank diameters ranging from 0.625" - 1.250". Metric shanks are also available.

For more information contact:

Slater Tools

44725 Trinity Drive

Clinton Township, MI 48038

586-465-5000

direct@slatertools.com

www.slatertools.com
