Four High Pressure Coolant Systems

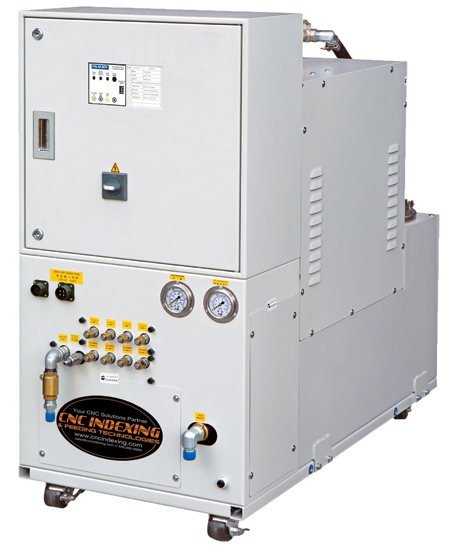

HPC-1000 high pressure coolant system

Four high-pressure coolant systems are available from machine tool equipment and accessory supplier CNC Indexing & Feeding Technologies, each engineered to match the production and economic requirements of differing manufacturing environments. The addition of high pressure coolant capability increases productivity by enabling use of increased feeds and speeds, boosting workpiece quality and surface finish and reducing manufacturing costs via increased tool life," said a company spokesperson.

The HPC-400 high-pressure coolant system is suitable for lathe and vertical mill applications and for shops that have a limited budget but seek the advantages of high-pressure coolant. The system's 8 GPM gear pump for water-based coolant is adjustable from 75 PSI - 427 PSI, and an on-board transfer pump is standard.

The HPC-1000 system offers versatility in applications on horizontal and vertical milling machines as well as lathes, and can be used in conjunction with other manufacturing equipment. The system's 8 GPM, 7.5 HP gear pump system for oil- and water-based coolant is adjustable from 75 PSI - 1,000 PSI. An on-board transfer pump, 37-gallon reservoir tank and four port outlets are standard.

The HPC-1500 coolant system achieves the higher flow rates needed to utilize tools with large coolant orifices. The system's 8 GPM, 7.5 HP gear pump handles either oil- or water-based coolant and is adjustable from 75 PSI - 1,500 PSI. The unit features an on-board transfer pump, 37-gallon reservoir tank and four port outlets.

The HPC-2000, CNC Indexing's largest standard high-pressure coolant system, employs oil-based coolant only and is suitable for CNC Swiss lathe machine tool applications. The system's 6 GPM, 10 HP gear pump is adjustable from 75 PSI - 2,000 PSI, and the unit features an on-board transfer pump, 37-gallon reservoir tank, eight port outlets and an oil chiller.

CNC Indexing also can custom-build systems tailored to specific production needs, such as those offering 2,500 PSI and higher with multiple preset pressures.

Steve Smith, President of CNC Indexing & Feeding Technologies, said, "Our company's comprehensive selection of high pressure coolant systems will enable any shop to take advantage of the productive and economic advantages of high pressure coolant technology."

For more information contact:

CNC Indexing & Feeding Technologies

7944 Innovation Way, Ste. B

Mason, OH 45040

513-770-4200

sales@cncindexing.com

www.cncindexing.com
