Connection Solution for Pump Drives with Solid Shafts

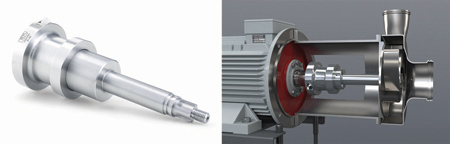

The Zero-Max ETP-CONNECT (left) provides an ideal connection solution for pump drives with solid shafts (right).

Zero-Max offers the ETP-CONNECT, a shaft connection that provides enhanced impeller lobe assembly for pump drives with solid shafts.

The ETP-CONNECT was developed to simplify cleaning and maintenance of pumps. This is often required in pharmaceutical, chemical, food and beverage processing systems when cleaning and maintenance needs to be done quickly and easily. This patented device connects the pump impellor to the motor using a single actuation screw.

The ETP-CONNECT is a precision bushing designed just for pump applications. "The unique design configuration accurately expands the I.D. of the connection when the single actuation screw is tightened," said a company spokesperson. "Since the expansion is caused by self-contained hydraulic pressure, the resulting force is perfectly even along all surfaces. Most important, the bushing aligns precisely without axial movement as it is tightened. The positioning accuracy of the ETP-CONNECT maintains impeller concentricity resulting in reduced vibration, improved pump and motor life."

"Another key ETP-CONNECT feature is its robust and precise design allowing it to be actuated thousands of times with repeatable accuracy and without any axial movement," said a company spokesperson. An Allen wrench is all that is required to mount and lock it into position. ETP-CONNECT'S have sealed, clean lines that resist debris collection and clean easily without any special maintenance.

ETP-CONNECT is designed around the customer's application. Contact Zero-Max with application requirements, and they will design a solution.

For more information contact:

Zero-Max, Inc.

13200 Sixth Ave. North

Plymouth, MN 55441-5509

800-533-1731 / 763-546-4300
