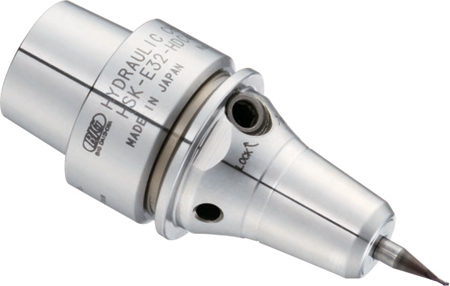

Smallest Hydraulic Chuck for HSK-E25 Machine Spindles



"BIG KAISER has introduced the world's smallest hydraulic chuck for HSK-E25 machine spindles, thus completing its extensive range of BIG KAISER Super Slim Hydraulic Chucks," said a company spokesperson.

The Super Slim type of hydraulic chucks (HDC) are suitable toolholders for precision finishing processes in confined areas with drills, reamers, ball mills, end mills, diamond reamers and grinding tools. Cutting tools with shank diameters of 3 or 4 mm can be clamped directly and are suited for high speed micro machining applications in the automotive, aerospace, medical, die and electronics industries.

"BIG KAISER designed the Super Slim HDC to require only a single wrench for clamping and unclamping, an easier and safer solution compared to heat shrink toolholders," said the spokesperson. These chucks can clamp ultra-small end mills and drills directly, without needing a reduction sleeve. The external body diameter of the chuck nose is 0.551" (14 mm), and a gauge length of 1.575" (40 mm) making it compact and precise. Each tool is precision balanced for speeds up to 60,000 RPM and runout accuracy of less than 3 microns (.00012") at 5xd.

"Our HSK-E25 tool holder lineup now includes BIG KAISER's high precision, low runout, hydraulic chucks," said Jack Burley, VP of Sales and Engineering at BIG KAISER. "These ultra-precise hydraulic chucks, with their extremely slim design, are suited for high-precision finish milling work on ultra high-speed spindles on machines with small work envelopes."

The Super Slim HDCs for HSK-E25 machine spindles are available from stock; they are also available for the HSK-E 32 and HSK-E 40 spindle types.

For more information contact:

BIG KAISER Precision Tooling Inc.

2600 Huntington Blvd.

Hoffman Estates, IL 60192

888-TOOL-PRO / 224-770-2999

bigkaiser@us.bigkaiser.com

www.bigkaiser.com
