Portable Solution for Multiprocess Welding

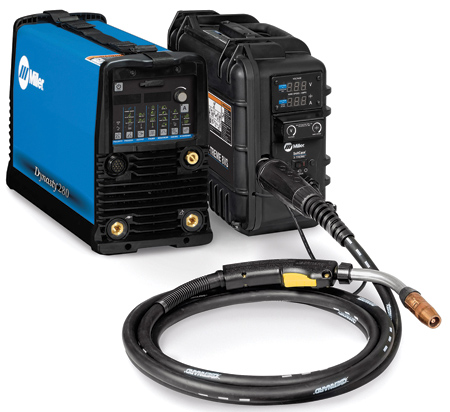

Miller Electric Mfg. Co. offers the Dynasty 280 DX with CV, a multiprocess welder capable of AC/DC TIG, MIG and stick welding. Weighing 55 lbs., this portable machine is suitable for the shop or jobsite for a wide range of applications.

Miller Electric Mfg. Co. offers the Dynasty 280 DX with CV, a multiprocess welder capable of AC/DC TIG, MIG and stick welding. Weighing 55 lbs., this portable machine is suitable for the shop or jobsite for applications including shipbuilding, construction, precision fabrication, heavy fabrication, pipe and tube fabrication, and maintenance and repair.

With the Dynasty 280 DX with CV, welding operators can TIG weld 0.012 to 3/8" aluminum and 0.004 to 3/8" steel. The machine offers enhanced arc performance and the ability to TIG weld with AC waveforms, including advanced squarewave, soft squarewave, sine wave and triangular wave.

Offering multiprocess versatility, the CV output of the machine delivers MIG welding capabilities when paired with a SuitCase X-TREME voltage-sensing feeder. The feeder is powered off the arc voltage of the power source and can run both solid and flux-cored wires.

The Dynasty 280 DX with CV delivers up to 280 amps for welding and includes Auto-Line technology, which allows for any input voltage hookup from 208 to 575 volts with no manual linking. This provides convenience for any job setting and is suitable for applications where there is dirty or unreliable power.

In addition, the machine uses high frequency (HF) on starts only to eliminate HF interference issues during welding. Blue Lightning HF arc starter technology provides non-contact arc initiation, resulting in more consistent arc starts and greater reliability.

Operators can make precision adjustments using the machine's all-digital controls, for greater quality control and repeatability. The Dynasty 280 DX with CV also includes Pro-Set technology, which eliminates the guesswork when setting weld parameters. Operators can simply select the feature and adjust until Pro-Set appears in the display.

For more information contact:

Miller Electric Mfg. Co.

P.O. Box 100

Lithonia, GA 30058

800-426-4553

info@millerwelds.com

www.millerwelds.com
