Electra Fiber Laser

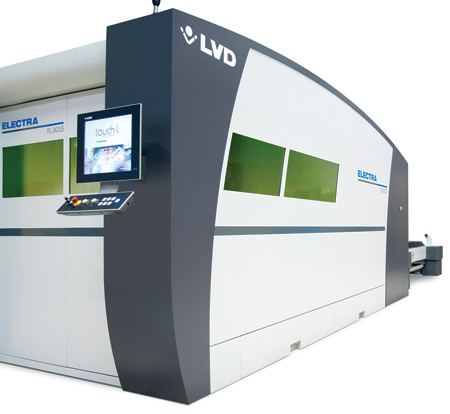

LVD Strippit offers the Electra FL 3015 8 kW fiber laser cutting machine. The ultra-high-speed Electra cuts a wide range of ferrous and non-ferrous materials as fast as the thermal process allows without dynamic compromise. The Electra 8 kW can maintain 2G acceleration speed while cutting, producing high quality, high accuracy cuts in simple to complex configurations. The Electra FL also features an advanced cutting head, "smooth lead-in" feature, advanced drive system and the latest generation of LVD Strippit's intuitive Touch-L control.

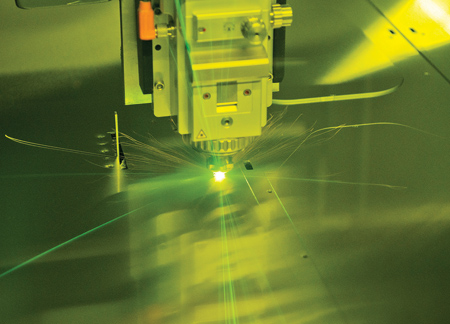

Electra is equipped with an advanced cutting head featuring automated adjustment of focus position and focus diameter (zoom focus). Zoom focus control can improve piercing times, cutting speeds and cut performance in all material types and thicknesses, increase throughput and reduce the need for operator intervention. The ability to change the focal point allows Electra to pierce 20 mm material in just two seconds for productivity on fully nested sheets. This also means that less heat is generated in the material, making it more efficient to cut small holes.

Electra's "smooth lead-in" feature provides faster but stable lead-in after fast piercing when cutting thicker material (greater than 1/4", 6 mm) with Nitrogen, resulting in an average gain of up to 15% on part cutting times.

The Electra uses a linear drive system to harness the full benefits of the higher power cutting capability of the 8 kW fiber laser. Electra's high cutting dynamics and rapid acceleration achieve high part output. "The machine's rigid frame design ensures that cutting performance is reliable at top cutting speeds," said a company spokesperson. The rigidity of the mono-frame construction also means no foundation is required.

The Electra's laser source has a high wall plug efficiency of up to 40%, offering savings in electrical operating costs.

The Electra features the latest generation of LVD Strippit's 19" touchscreen graphical interface, making the system easy to operate for virtually any level of user. An icon-driven user interface guides the user through all necessary man-machine interactions, making machine set-up fast and uncomplicated.

Electra offers two levels of automation: an automated load/unload system designed to keep pace with Electra's high cutting speed (FA-L), or a Compact Tower (CT-L), offering full capabilities for loading, unloading and storage of raw materials and finished parts.

For more information contact:

LVD Strippit

12975 Clarence Center Rd.

Akron, NY 14001

800-828-1527 / 716-542-4511

www.lvdgroup.com
