Compact Simultaneous 5-Axis Machine Features Auto Work Changer

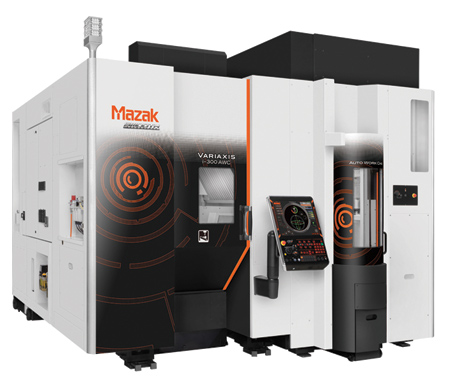

Mazak's versatile VARIAXIS i-300 simultaneous 5-axis vertical machining center (VMC) is now even more flexible and efficient with the addition of a high-capacity auto work changer (AWC). Designed for automated small- to medium-size part-processing operations, the new VARIAXIS i-300 AWC is engineered for machining aluminum and other non-ferrous metals in a wide variety of industries, including aerospace, medical and automotive.

The machine comes standard with a multiple drum tool storage system that holds up to 145 tools, while the AWC with 32 positions accommodates workpieces up to 13.779" in diameter, 12.401" high and weighing up to 135 lbs. This combination of ample tool and workpiece storage capacities allows even the busiest shops to achieve continuous unmanned operation and single set-up, DONE IN ONE processing. As production needs increase, shops can expand the AWC and tool storage capacities to 40 workpieces and 505 tools (in increments of 60 tools), respectively. Despite this large capacity, the machine has a significantly smaller footprint due to its stacking 30-tool drum magazines.

In addition to its new features, the VARIAXIS i-300 AWC builds upon the existing success of the VARIAXIS series. Its standard 12,000 RPM spindle is available in speeds up to 30,000 RPM, and its integral spindle/motor design and temperature-controlled coolant enable vibration-free, high-speed operation. The machine's trunnion-style rotary table provides high rigidity and accuracy in the A and C axes, while its compact spindle cartridge, cam-driven tool changer, ball screw core cooling and MX hybrid roller guide system all contribute to operator ease of use and machining precision.

The VARIAXIS i-300 AWC features Mazak's MAZATROL SmoothX CNC control. Its software solutions include the SMOOTH Energy Dashboard to help shops meet sustainability goals, SMOOTH Thermal Shield and MAZACHECK to calibrate temperature and axes alignment respectively, and multi-touch capacitive screens for searching through and modifying cutting programs. The latest addition to the SMOOTH TECHNOLOGY suite is SMOOTH AWC, which keeps track of present and future tool resources, both at the machine and, with the addition of an optional interface, at an external PC, which allows for truly continuous unmanned operation.
