Shark Line Takes a Bite Out of Threading

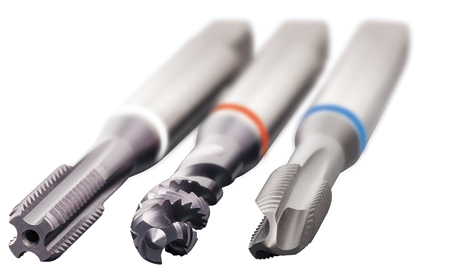

The Red, White and Blue Dormer Shark Taps for material-specific applications.

Dormer Pramet offers a range of material specific taps offering high performance and process security.

The taps, branded Shark Line, are recognizable by their color ring coding on the shank, which identifies material suitability and supports quick and easy tool selection.

Yellow Shark is for structural, carbon and low alloy steels, Red Shark for alloy steels, Blue Shark for stainless steels and White Shark for cast irons. The Shark Line is available in standard ANSI shank and square with DIN overall length, offering extra reach and compatibility with Inch Standard Tap Holding. "The taps' advanced geometry provides a significant reduction in axial forces and torque compared to conventional taps," said a company spokesperson. This provides problem-free threading of blind and through holes.

All Shark taps are manufactured from a powder metallurgy tool steel. This provides a combination of toughness and edge strength, allowing the tap to perform at higher cutting temperatures while offering enhanced performance and tool life.

The spiral flute taps (Yellow, Red and Blue Shark) incorporate a special edge treatment to increase strength and reduce the chance of micro-chipping on the cutting edges. This is designed to improve performance and tool life.

An internal coolant option (White Shark Form E taps) is designed to improve tool life, provides optimum chip evacuation when threading short chipping materials and is beneficial in horizontal blind-hole machining.

For more information contact:

Dormer Pramet

2511 Technology Drive

Suite #113/#114

Elgin, IL 60124

847-783-5700

www.dormerpramet.com
