5 Micron Compressed Air Filter

Walmec North America offers the , which provides point of use filtration of liquids, oils, and other contaminants. Applications, including surface preparation, paint spraying, powder coating, air powered tools, and pneumatically operated equipment.

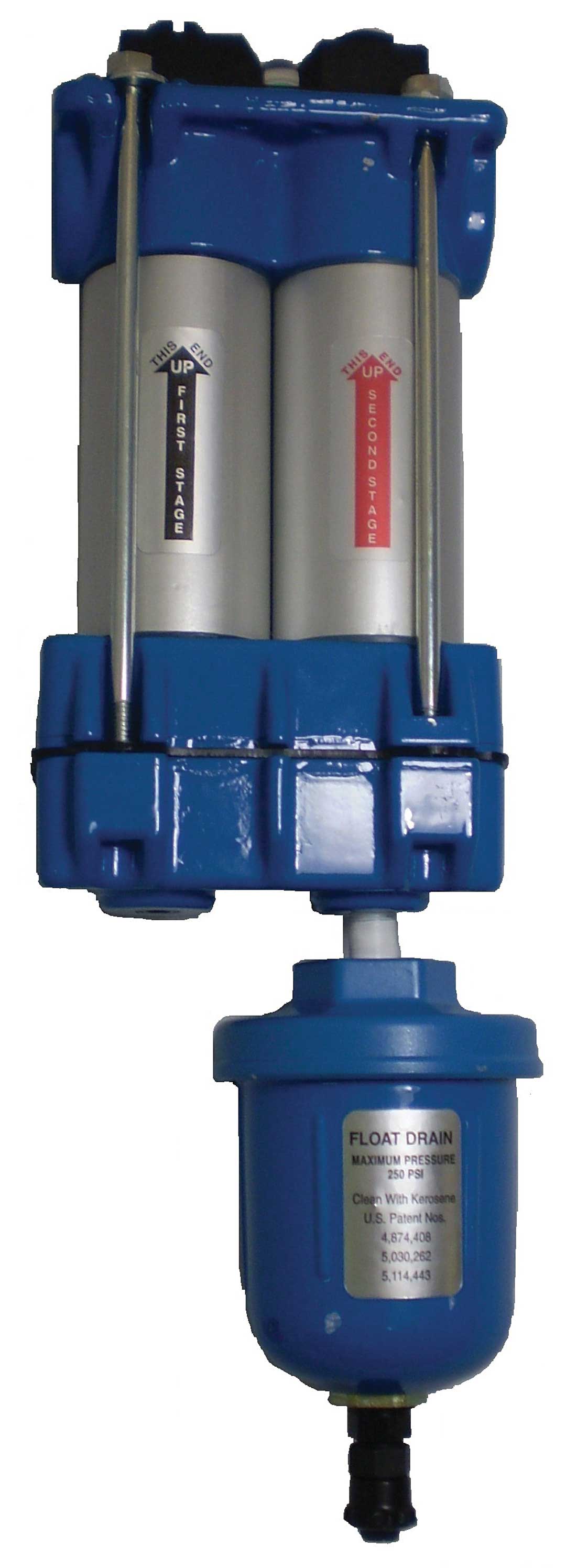

This two-stage filter is designed to operate most effectively when placed near the point of use. It has a 5 micron rating and is available in sizes with flow ranges of 15 SCFM to 250 SCFM and pressure ratings of up to 250 PSI.

How it works:

• The first stage filter knocks out all liquids and particles of dirt, dust, rust and scale.
• The second stage filter removes remaining moisture, contaminants, and particles down to 5 microns. An automatic float drain under the second stage filter opens and expels all collected liquids when an ounce or more is present. It is fully automatic with no continuous air loss.

A permanently mounted differential pressure gauge provides a visual indication of required maintenance, which is easily done by installing the appropriate service kit. There is no need to remove the unit from the compressed air system. An optional pressure regulator with gauge is available.
