Adhesive Workholding Technology

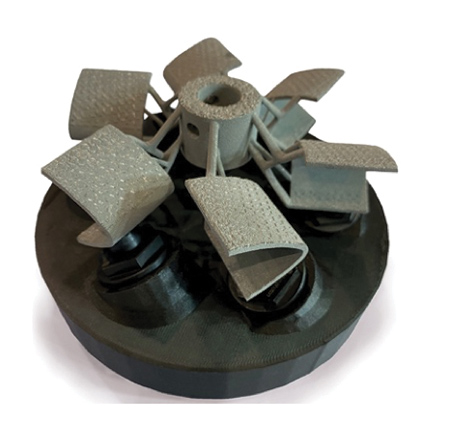

A 3D printed fixturing system using Blue Photon grippers and BlueGrip workholding adhesive to hold an additive impeller part for post-processing. Additive image courtesy of Autodesk/Renishaw Canada.

Blue Photon grippers and BlueGrip workholding adhesive products are designed to simplify how parts are loaded to reduce scrap and increase spindle up-time. Hard-to-hold additive parts for post-processing are particularly suited to Blue Photon's adhesive workholding technology.

Blue Photon's patented grippers are load bearing and light transmitting fixture components inserted into an insert and fixturing system which supplies up to 605 lbs. of tensile holding power each. The process involves applying proprietary BlueGrip workholding adhesive to the grippers and curing through the grippers with ultraviolet light for 60 seconds. "By using grippers, and eliminating clamps on top of the part, exceptional cutting tool access is achieved," said a Blue Photon spokesperson. The part de-bonds with a 1/4 turn twist of the gripper or hot water soak. Residual adhesive is simply removed by the application of pressurized steam or hot water, and a light peeling action. Any part that is at risk of distortion from traditional clamping or poses complications in fixture design are a potential candidate for the workholding technology.

Blue Photon is a manufacturer of adhesive workholding components, including patented Blue Photon grippers and insert assembly products. Blue Photon offers adhesive workholding for assembly, ECM, EDM, grinding, inspection, laser, milling and turning applications for the additive, aerospace, ceramic, job shop, optical and medical machining industries.

For more information contact:

Blue Photon Technology & Workholding Systems LLC

1002 Industrial Park Dr.

Shelby, MI 49455

855-777-2040

sales@bluephotongrip.com

www.bluephotongrip.com

IMTS West Building, Level 3

Booth 431392
