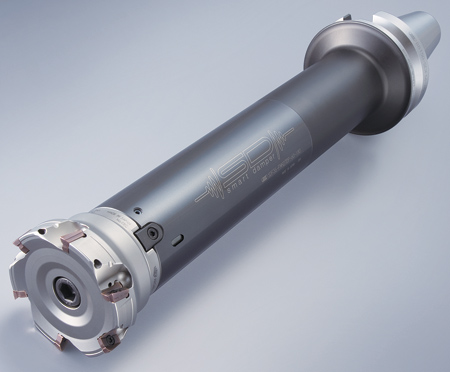

Long Mill Holder with Smart Damper Vibration Control



BIG DAISHOWA has expanded its lineup of Smart Damper-equipped, arbor-style face mill holders. This new holder is the largest and longest milling tool BIG KAISER has offered yet. It supports face mills with diameters of 3", 4", 80 mm or 100 mm with an arbor pilot diameter of either 1" or 27 mm.

"The Model SDF57 assembly has an outside diameter of 2.83 in. and allows users of 3 in. face mills to access up to 19.68 in. of reach, the longest tool assembly in the industry using standard components," said a company spokesperson. "Face milling components used in construction equipment, aerospace and oil/gas industries will see the most opportunity for this new toolholder with vibration dampening, where long reaches are common."

Smart Damper is designed to enable quiet, vibration-free milling, even in long-projection assemblies. The integral design of Smart Damper shortens the distance from the damping mechanism to the cutting edge. This produces higher damping effects to the tool assembly, minimizing chatter or vibration for better surface finishes and improved metal removal rates.

The Smart Damper face mill holder is available for BBT50, BCV50 and HSK-A100 shank styles.

For more information contact:

BIG DAISHOWA Inc.

2600 Huntington Blvd.

Hoffman Estates, IL 60192

888-TOOL-PRO / 224-770-2999

bigdaishowa@us.bigdaishowa.com

www.bigdaishowa.com
