Compact Tool Grinding Machine
September 1, 2022

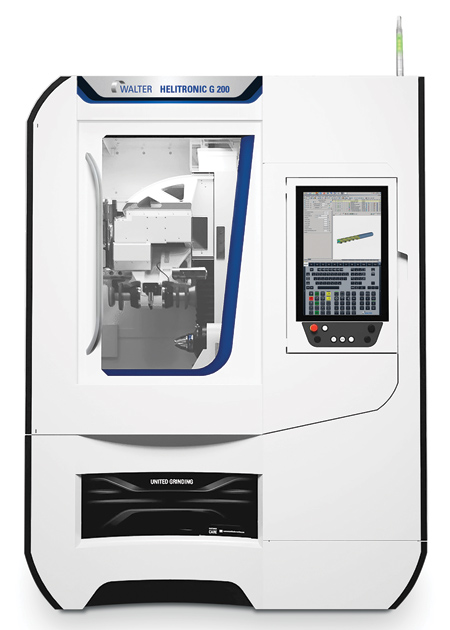

UNITED GRINDING offers the compact HELITRONIC G 200 tool grinding machine.
Featuring a floor space of less than 2.3 sq. m (24.8 sq. ft.), the HELITRONIC G 200 offers grinding and resharpening of rotationally symmetrical cutting tools ranging from 1 mm to 125 mm (0.039" to 4.92") in diameter, with a grinding wheel up to 150 mm (5.91") possible. The HELITRONIC G 200 can accommodate a maximum tool length of 235 mm (9.25") and a tool weight of up to 12 kg (26.45 lbs.).
The ergonomic design integrates a swiveling multifunction touch panel with a 21.5" monitor, facilitating easy operation and accessibility to the working area. A low-vibration solid mineral cast bed and C-frame construction offers high damping capabilities and thermal stability resulting in enhanced grinding precision.
"The linear axes X, Y, Z are built according to the high WALTER quality standard," said a company spokesperson. "The rotating A and C axes are equipped with torque motors and provide long life with minimum service effort."
The HELITRONIC G 200 uses HELITRONIC TOOL STUDIO grinding software from WALTER, which provides ease of programming with high flexibility.

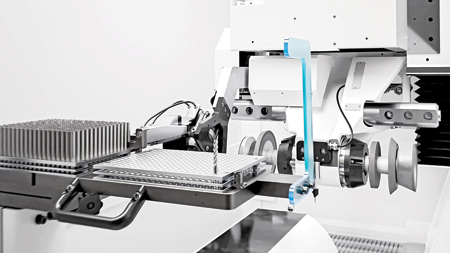

For increased productivity, a loading system is available. The Top Loader is directly integrated into the work envelope of the machine for easy access and therefore requires no additional floor space. Suitable for tools from 3 mm to 16 mm (0.118" to 0.63") in diameter, the maximum tool capacity of the loading system is up 500 tools for tools with a 3 mm (0.118") diameter. The Top Loader uses WALTER-standard robot pallets and automated electrical teaching.
For more information contact:
UNITED GRINDING North America Inc.
2100 UNITED GRINDING Blvd.
Miamisburg, OH 45342
937-859-1975
info@grinding.com
www.grinding.com
