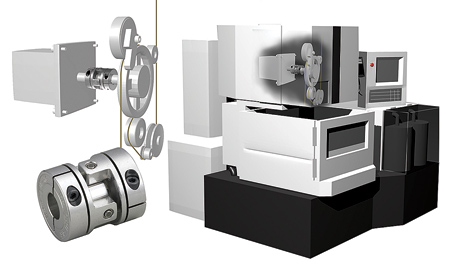

Pin-Hub Couplings with Low Backlash



Miki Pulley has introduced its Paraflex Pin-Hub Couplings for direct sale to OEMs in North America. Key features of these couplings include high allowable misalignment, low backlash and resonance dampening.

With a pin-bushing type design, these Paraflex Couplings are available in two models. The CPU model has a maximum torque of 25 Nm and allows angular misalignment up to 4°. The CPE model has a maximum torque of 10 Nm and allows angular misalignment up to 1°. Available bore sizes range from 3.0 mm to 22 mm.

An important feature of these Paraflex Couplings from Miki Pulley is ease of installation. Clamp style hubs made of sintered aluminum slip easily onto two connecting shafts with the coupling locked into position with recessed tightening screws.

Capable of handling system speeds up to 6,000 RPM depending on model, Paraflex Couplings are RoHS compliant. They operate in temperature environments from -30 °C to +100 °C. They are ideal for automated packaging systems, chip mounters, electric discharge machines and similar applications.

In addition to the Paraflex Coupling line, Miki Pulley designs and manufactures a complete line of motion control components. These include clutches, brakes, flexible shaft couplings, shaft hub locking devices and speed control devices.

For more information contact:

Miki Pulley US

13200 6th Avenue North

Plymouth, MN 55441

800-533-1731

sales@mikipulley-us.com

www.mikipulley-us.com
