GPT Gearhead Family with Numerous Gear Ratios

The new metal GPT planetary gearhead family is characterized by its compact dimensions, high torque and very fine graduations of the numerous gear ratios. It is robust and tolerates both frequent and sudden load changes. The gearheads are designed to operate with high efficiency and can be combined with many different motors and enable various shaft configurations.

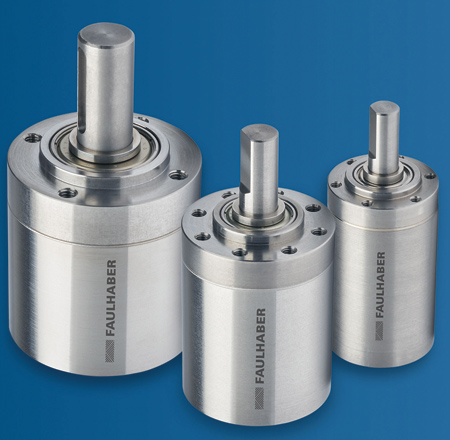

"The pure metal GPT gearheads achieve performance values comparable to more expensive technologies on the market like ceramic components," said a company spokesperson. "The gearheads, available with diameters of 22 mm, 32 mm and 42 mm, achieve top values for torque as well as for speed. Compared to the predecessor models, the continuous input speed was more than doubled above 10,000 RPM and can support input speeds up to 20,000 RPM in intermittent mode. The 42GPT Series can sustain an intermittent torque up to 25 Nm while its length is squeezed down to 71 mm. The GPT gearheads are designed to be extremely robust and tolerate both continuous as well as very abrupt and sudden load changes. At the same time, they are significantly shorter than other models in the same diameter."

The gearheads can be equipped with up to four reduction stages. Each stage is individually optimized to achieve the highest power in terms of torque and speed. An important feature of the product family is the high number of available gear ratios and their uniform distribution. As a result, the motor power can be utilized optimally: a higher torque can be achieved with the same input speed; a higher speed can be achieved with the same torque. In addition, power consumption is reduced through a much higher efficiency compared to previous product generation. The new GPT family is also particularly suited for accurate positioning applications granted by a very low backlash characteristic.

"With high performance values and enhanced robustness, the gearheads of this product family are suitable for various demanding applications," said the spokesperson. Their compact design fits particularly well with the BXT brushless flat motor family when size is a key constraint integrating actuators inside applications. A large selection of DC motors is also available in combination with the new GPT gearhead family. They are designed for different types of robots-inspection, assembly, rehabilitation or exoskeletons-as well as for production and laboratory automation, packaging machines, measurement and testing equipment or semiconductor handling.

For more information contact:

FAULHABER MICROMO LLC

14881 Evergreen Ave.

Clearwater, FL 33762-3008

800-807-9166 / 727-572-0131

www.faulhaberusa.com
