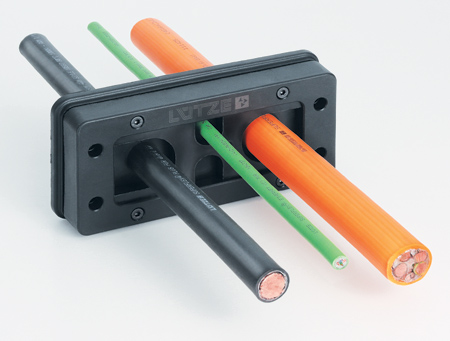

Cablefix One Cable Entry Kits



LUTZE Inc.'s Cablefix One kits simplify the need for configuration of cable entry systems. This innovative cable management system features a multi-layered seal design allowing individual layers to be removed to vary the clamping range of the seals from 3.5 mm to 29.5 mm.

Cablefix One is available in three pre-configured kits, which include all components required to seal four, seven or 10 entry points, depending on the version. These kits are designed to reduce the need for cumbersome seal configuration, make ordering easy and reduce the number of part numbers on drawings, BOMs and in inventory. Unused seals are closed by default, eliminating the need for blanking plugs.

Cablefix One also provides enhanced strain relief (per EN 62444) to secure cables against accidental pullout. The system protects up to UL Type 4X, 12, 13 and IP65. Mounting the frame to the cabinet is made easy by using the provided cutout template or by using a standard 112 mm x 46 mm punch tool. The four-entry kit (p/n 606500), seven-entry kit (p/n 606501) and 10-entry kits (p/n 606502) are all available.

For more information contact:

LUTZE Inc.

13330 South Ridge Drive

Charlotte, NC 28273

800-447-2371

info@lutze.com

www.lutze.com
