New Machine Models for the Medical Manufacturing Industry



Tsugami/Rem Sales, the exclusive North American importer of Precision Tsugami machine tools, has announced the release of three enhanced machine models for the North American medical manufacturing market.

Tsugami S205-II

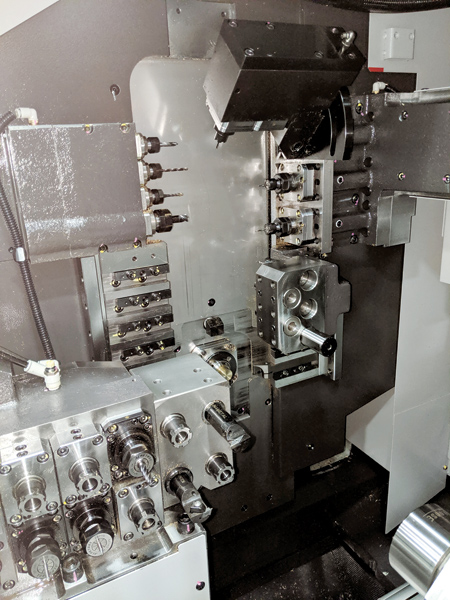

The Tsugami S205-II is a 20 mm 5-axis opposed gang tool Swiss-type CNC lathe. This machine is suitable for variable volume production and offers a wide range of capabilities. Its modular tooling layout can feature up to 16 different live tools, delivering increased capability and rapid changeover times. Highlights include a three-toggle clamping system and thermal displacement compensation as standard.

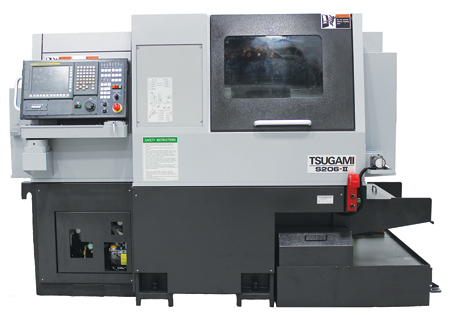

Tsugami S206-II

The Tsugami S206-II is a 20 mm, 6-axis opposed gang tool CNC lathe suitable for variable volume production and featuring a wide range of capabilities. The S206-II's modular tooling layout can feature up to 24 different live tools, delivering advanced capability and rapid changeover times. The S206-II CNC lathe features a Y-axis tool post that allows users to machine complex parts using the main and back spindle simultaneously. "Experience the flexibility of 6-axis control and the precision and accuracy of Swiss turning with a three-toggle clamping system and thermal displacement compensation included as standard," said a company spokesperson.

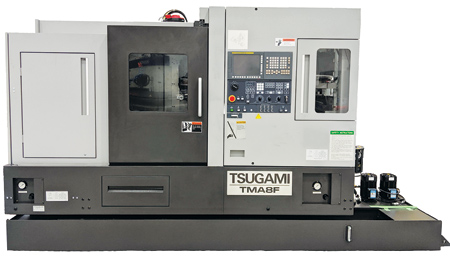

Tsugami TMA8F

The Tsugami TMA8F multitasking turning center is a 7-axis turn/mill equipped with a 60 tool CAPTO C4 magazine and the ability to perform full 5-axis simultaneous machining of complex parts complete, all within a compact, flexible machine tool. Users can take the most complex part and perform a full range of operations-including CNC milling, drilling, tapping, compound angle work, turning, boring and threading-in a single set-up. Highlights include glass scales on XYZ, standard touch probe, included parts catcher and C-axis capability. The 8" chuck allows machining of large diameter parts while a quick change collet system can be adapted for up to 2.5" bar work through the spindle.

For more information contact:

Rem Sales, LLC

910 Day Hill Road

Windsor, CT 06095

866-224-8576

www.remsales.com

Southwest

NM

Hartwig, Inc.

8599 Prairie Trail Dr., Suite 400

Englewood, CO 80112

303-373-9450

N. TX

Hartwig, Inc.

5234 Bear Creek Court

Irving, TX 75061

972-790-8200

www.hartwiginc.com

LA, S. TX

Hartwig, Inc.

4727 South Pinemont, Suite 100

Houston, TX 77041

713-749-9600

www.hartwiginc.com

OK

Hartwig, Inc.

1913 West Reno St.

Broken Arrow, OK 74012

918-259-0260

www.hartwiginc.com

AR

Morris South

350 Electronics Blvd

Huntsville, AL 35824

256-461-8111

www.morrissouth.com

SOUTHEAST

NC, SC, GA, VA

Morris South

12428 Sam Neely Road

Charlotte, NC 28278

704-523-6008

www.morrissouth.com

AL,MS, TN, FL (panhandle)

Morris South

350 Electronics Blvd

Huntsville, AL 35824

256-461-8111

www.morrissouth.com

FL

Trident Southeast

913 US Highway 301 South

Tampa, FL 33619

813-628-0665 / 877-504-7208

www.trident-se.com

NORTHEAST

CT, MA, RI, N. NJ, NYC (metro area),

Long Island, Hudson Valley

The Robert E. Morris Company

910 Day Hill Road

Windsor, CT 06095

860-687-3300

www.robertemorris.com

NH, VT, ME

The Robert E. Morris Company

12 Crosby Road

Dover, NH 03820

603-609-4700

W. NY, W. PA, WV

Morris Great Lakes

9151 Marshall Road

Cranberry Township, PA 16066

877-373-8906

www.morrisgreatlakes.com

E. PA, S. NJ, DE, MD

Phillips Corporation

3599 Marshall Lane

Bensalem, PA 19020

215-245-4200

www.lanceco.com

MIDWEST

OH, IN, KY

Technical Equipment

10165 International Blvd

Cincinnati, OH 45246

800-852-0582

www.techequip.com

MI (except U.P.), N.W. Indiana

Rem Sales Direct

833 Golden Ave, Suite C

Battle Creek, MI 49015

269-965-6012

MI (UP)

Network Machinery

www.networkmachinery.com

S. IL, MO, W. IA, E. NE, KS

Hartwig, Inc.

10617 Trenton Avenue

St. Louis, MO 63132

314-426-5300

www.hartwiginc.com

Regional Offices:

Kansas City: 816-231-1850

Wichita: 316-522-5500

Omaha: 402-330-9426

N. IL, MI (U.P.), MN, ND, SD, WI,

Morris Midwest

8718 Monticello Lane North

Maple Grove, MN 55369

763-424-5622

www.morrismidwest.com

Morris Midwest

2323 Corporate Drive

Waukesha, WI 53189

414-586-0450

www.morrismidwest.com

Morris Midwest

68 Congress Circle West

Roselle, IL 60172

630-351-1901

www.morrismidwest.com

West

CA, NV

Ellison Technologies

9912 Pioneer Blvd.

Santa Fe Springs, CA 90670

562-949-8311

www.ellisontechnologies.com

S. CA

Tsugami Technical Center

1521 E. Orangethorpe Ave., Ste E

Fullerton, CA 92831

866-224-8576

www.remsales.com

AZ

Arizona CNC

1205 S. Park Lane, Suite 2

Tempe, AZ 85281

480-615-6353

www.arizonacnc.com

WA, OR

Ellison Technologies

9912 Pioneer Blvd.

Santa Fe Springs, CA 90670

562-949-8311

www.ellisontechnologies.com
