HMC Features Higher Rapid Feedrates, More Compact Construction

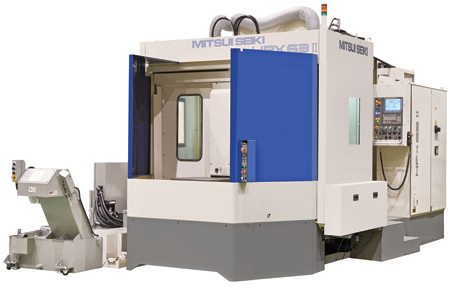

Mitsui Seiki's HPX63 II 4-axis horizontal machining center (HMC), an improved version of the company's HPX63 unit, features a 70% faster rapid feedrate of 54 m/min that produces shorter cycle times, and a 14% reduction in shop floor footprint (now 5,554 mm x 3,530 mm) to maximize manufacturing facility space.

Capable of machining workpieces as large as 1,050 mm D x 1,050 mm H, the HPX63 II machining center is engineered to process medium-size precision parts. Pallet size is 630 mm square and maximum table load is 1,200 kg. Positioning accuracy and repeatability are +/-0.001 mm (one micron).

X-, Y- and Z-axis strokes are 1,000 mm, 800 mm and 900 mm respectively. An 18.5/15 kW (30 min./continuous) spindle utilizes ISO 7/24 50-taper tooling and provides rotation speeds from 15 RPM - 6,000 RPM as well as 600 Nm maximum torque. The B-axis rotary table offers high torque and acceleration.

A 60-pocket automatic tool changer accommodates tools up to 500 mm long and 125 mm in diameter (265 mm diameter without adjacent tools), weighing up to 25 kg.

"The HPX63 II represents the latest evolution of our company's series of 630 mm-pallet HMCs," said Tom Dolan, Mitsui Seiki Vice President of Sales and Marketing. "Its improved performance and convenience illustrate the continuing efforts of Mitsui Seiki to help our customers increase their efficiency and competitiveness."

For more information contact:

Mitsui Seiki USA Inc.

563 Commerce Street

Franklin Lakes, NJ 07417

201-337-1300

info@mitsuiseiki.com

www.mitsuiseiki.com
