Ultra Compact Simultaneous 5-Axis High Precision VMC

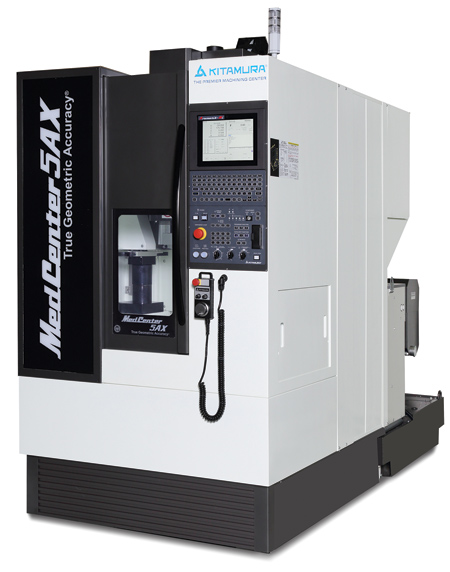

Kitamura Machinery has added to its 5-axis line up with the MedCenter5AX vertical machining center (VMC). "This ultra-compact 5-axis VMC brings with it the largest work envelope in its class and offers unparalleled precision, accuracy and speed for expanded machining capability in the machining of highly complex, multi-sided parts in one set-up," said a company spokesperson.

The MedCenter5AX employs an X-, Y- and Z-axis, and additional tilting A-axis (+/-120°) and a rotary C-axis (360°) with a 0.001° minimum indexing command. Machining of high precision, complicated parts like orthopedic implants or aerospace parts can be completed in one operation, reducing the overall machining process. The maximum workpiece size (dia. x height) of O220 mm (8.7") x 175 mm (6.9") and maximum table load capacity of 44 lbs. allow for high flexibility and versatility in the machining of smaller highly precise, highly intricate parts.

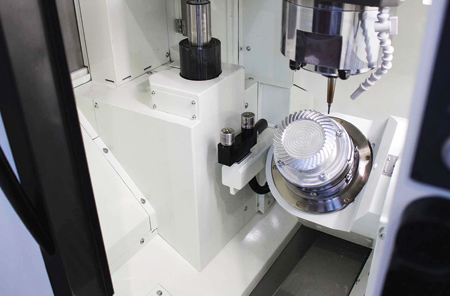

Standard high speed, direct drive 4th and 5th axis rotary tables offer smooth simultaneous 5-axis movement for complex cutting applications. Rigid in design and equipped with high resolution optical scale feedback on all axes, the MedCenter5AX offers the precise accuracies needed [positioning accuracy of ±0.002 mm (±0.000079")]/full stroke for a variety of small part machining.

Kitamura's standard high speed 30,000 RPM, 18 kW (24.5 HP) direct drive HSK-E40 spindle offers enhanced rigidity and stiffness in spindle construction and function while allowing for super fine finish capabilities. Suitable for small diameter tools and hard milling, the MedCenter5AX offers a standard air through spindle feature for dry cutting and is also equipped to handle up to 1,000 PSI coolant through the spindle for deep hole drilling requirements.

"The MedCenter5AX may be compact but it is equipped with a large 40-tool magazine-a great benefit when machining more complex parts," said the spokesperson. Tool changes are a fast 1.5 seconds. To allow optimum operator access and convenience when setting up tools or performing routine maintenance, the tool magazine is located toward the back side of the machine.

For increased productivity, Kitamura offers an optional 12-station automatic pallet system for running long hours of unmanned operating in the machining of both highly-mixed or high-volume production parts.

Kitamura combines many standard features in its feature-rich Arumatik-Mi control. "With a five times faster processing speed, the Arumatik-Mi CNC controller offers a smooth control process for super-fast machining of complex workpieces," said the spokesperson. "Featuring the latest in advanced, ultra-intuitive touchscreen technology, dedicated 5-axis control functions and advanced 5-axis NC simulation and verification software, the Arumatik-Mi is your solution for easier programming, part set-up and operation of complex components," concluded the spokesperson.

For more information contact:

Kitamura Machinery of USA Inc.

78 E. Century Drive

Wheeling, IL 60090

847-520-7755

info@kitamura-machinery.com

www.kitamura-machinery.com
