Micromachining End Mills
October 1, 2019

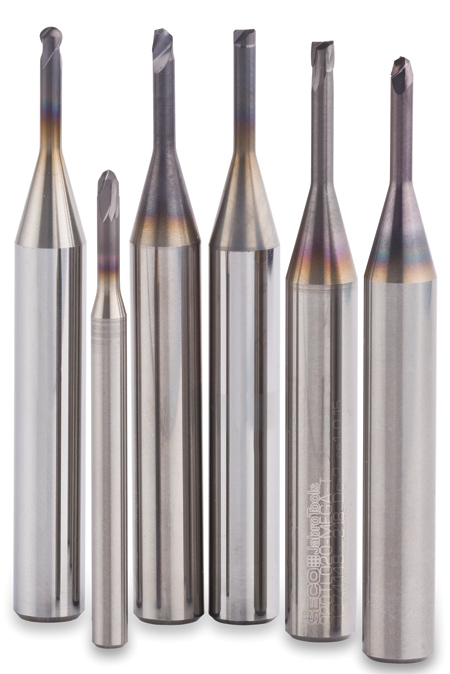

Seco Tools offers its Jabro-Mini JM500 line of universal micro end mills that spans more than 180 items and offers the versatility to machine small- and micro-sized parts made from materials that are the most common in industry segments such as aerospace, medical and the 3Cs (computers, consumer electronics and communications).
The end mills' optimized carbide grade, geometries, tolerance and polished SIRA coating generate enhanced surface finishes on a wide range of parts made from titanium, steel, heat-resistant superalloys or stainless steel. For increased performance and long tool life, the geometries incorporate 30° helixes and 8° rakes. Two torical geometries are available in 2- and 4-flute versions, while two ball nose styles are offered in with 2- and 3-flute versions.
The range includes diameters of 0.008" to 0.120" (0.2 mm to 3 mm) in seven different overhang lengths from 2 to 20 XD.
For more information contact:
Seco Tools LLC
2805 Bellingham Drive
Troy, MI 48083
248-528-5200
secotools.us@secotools.com
www.secotools.com/us
