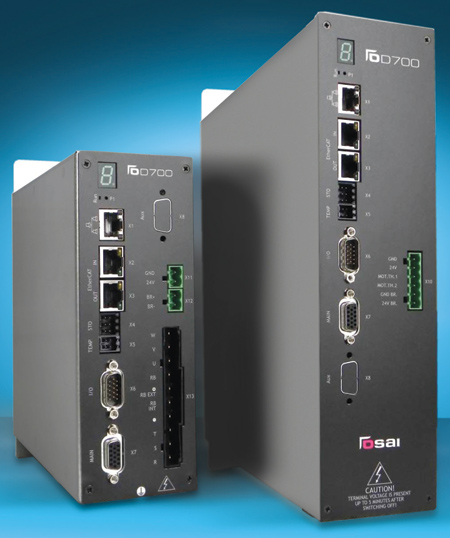

OPENdrive OD700 servo-drives for brushless motors are the latest products from OSAI USA. These EtherCAT servo-drives integrate perfectly with OSAI's OPENcontrol family. They complete the EtherCAT supply of flexible and open CNC systems that are equipped with numerous fieldbus capabilities to handle complex operating challenges and customizations.
"OPENdrive OD700 is ideal for metalworking machine tools, plasma, oxy-fuel, waterjet, laser cutting, wood and stone machining systems," reports Ivica Simunic, National Sales Manager for OSAI USA.
A key feature is automatic recognition of connected motors and configuration through ODM, a powerful browser executable both on PC and on machine board. This facilitates commissioning exclusively through the EtherCAT channel without modifying machine connections. ODM enables visualization and modification of characterization parameters of drives and motors in addition to drive analysis through diagnostic graphics.
ODM also enables drive functions such as digital filters for the compensation of mechanical imperfections and the actuation time of the brake motor to synchronize it with axis motions. A multi-track oscilloscope allows execution of detailed analysis of axes behavior for the best machine performance.
Six OPENdrive models are available with current ratings of 1A, 3A, 6A, 12A, 18A and 36A in three sizes. Each model has internal sampling times (50 seconds for the current loop and 100 microseconds for velocity and position loops) allowing high dynamic management. This also allows connection to an auxiliary encoder transducer for increased position accuracy control of the mechanical system.
All models have integrated SIL3 certified safety function controlling power to the drive during machine operation. Drives are equipped with two encoder inputs managing multiple primary and secondary transducers. OASI brushless motors, when coupled with the drives, provide high inertia and dynamic operation. All motors are equipped with thermal sensors and are available with an optional brake. Speed range available: 3,000, 4,000 and 6,000 RPM with stall torque range of 0.2 to 66 Nm.
For more information contact:
Ivica Simunic
National Sales Manager
OSAI USA
711 East Main Street
Chicopee, MA 01020
413-598-5200
sales.osai.usa@primaelectro.com
www.osaicnc.com
