Dual Chamber Space Saver Furnace
May 1, 2016
Lucifer Furnaces offers its 8000 Space Saver Series dual chamber furnace. "From high temperature hardening to convection tempering, the dual chamber design delivers a full range of heat treating capabilities in a rugged, compact unit," said a company spokesperson.

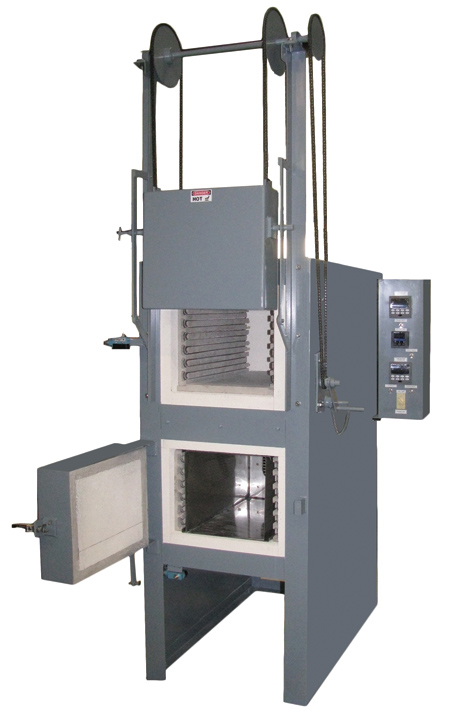

The 8000 Series features an air atmosphere high temperature upper chamber on top of an air recirulating oven, both with easily removable coiled wire heating elements in cast holders. A manual vertical lift door for the upper chamber keeps the hot face away from the operator at all times and the lower chamber is complete with a fan assembly, consisting of a stainless steel liner with recirculating fan, to provide uniform heat at low temperatures. Both chambers have the same work area dimensions and each is controlled by a single set point digital Honeywell controller. Chamber sizes range from 6" H x 6" W x 6" L up to 24" H x 36" W x 72" L.
The 8000 Series includes models that can be used with a protective atmosphere (AM or GT models), models that feature silicon carbide heating elements for high temperatures up to 2,750 °F (EHS and HS models) as well as lower chamber temperature ratings up to 1,600 °F. Lucifer Furnaces also designs chambers to meet AMS2750E specifications for temperature uniformity.
Lucifer Furnaces offers optional equipment for program control, recording, timing, alarm and strobe notification, over-temperature safety controls, loading/unloading systems and quench tanks. Racks, trays, baskets, gloves, tongs and foil wrap are available from Lucifer Furnaces.
For more information contact:
Lucifer Furnaces, Inc.
2048 Bunnell Road
Warrington, PA 18976
800-378-0095
info@luciferfurnaces.com
www.luciferfurnaces.com
