Non-Pull Out Collets for High Feed Application
May 1, 2016

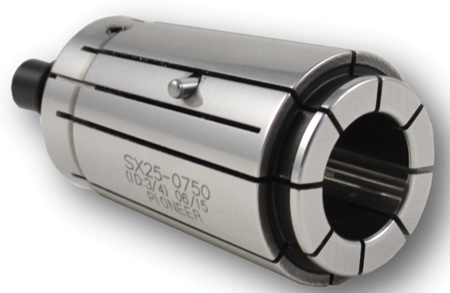

Pioneer has developed a system that is designed to be a cost effective option for high feed or high helix application where cutters are pulling from the holders. The system is based on the SX25 collet utilizing a standard 3 mm hardened dowel pin to retain the cutter shank. The initial designs are centered on Weldon based flats but can be used with cutter designs using radial grooves. There is a preset screw in the collet to hold the assembly together while installing into the collet chuck.
Customer flat or groove locations are available to meet customer requirements. All modification work is done in Elk Grove Village, IL, prior to shipment. Turnaround time averages three days.
The design requires no special equipment and provides TIR under 5 microns at 4D.
For more information contact:
Pioneer N.A.
641 Fargo Ave.
Elk Grove Village, IL 60007
800-930-6436
www.pioneerna.com
