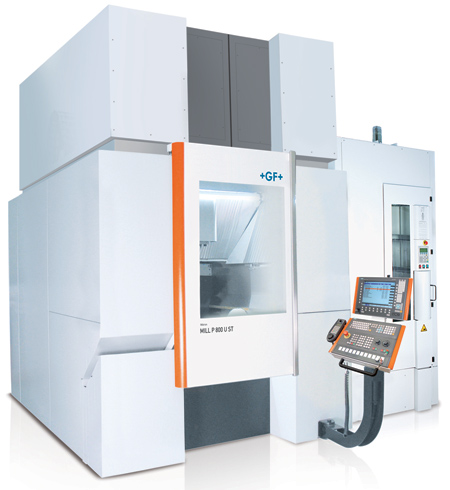

Compact Milling and Turning Machine



GF Machining Solutions has introduced the Mikron MILL P 800 U ST (simultaneous turning) to expand its technology portfolio to include milling and turning in a single machine. The compact machine provides 31.5" (800 mm) of X-axis travel, an 800 RPM C-axis rotation speed and a maximum table load of 1,763 lbs. (800 kg).

"GF Machining Solutions developed the MILL P 800 U ST with its gantry-type concept as a direct response to the needs of shops serving the automotive, aerospace, energy and general machining industries," said a company spokesperson. "The machine's small 137" x 118" footprint helps make it easy to integrate into existing operations, replacing two machines in the process.

"The combination of milling and turning technology in a single machine helps manufacturers achieve optimal productivity, accuracy and cost effectiveness." The MILL P 800 U ST is designed to achieve workpiece roundness, enhanced surface quality and a high material removal rate. Being able to fully machine components on a single machine also helps eliminate transfer-related part runout and errors and increases finished part quality.

The MILL P 800 U ST is capable of four-axis simultaneous turning, a capability often required by customers who need to have the cutting tool positioned at a 90° angle to the workpiece surface to avoid tool shape errors. The machine incorporates a 20,000 RPM HSK T63 spindle. Additionally, water-cooled torque motors on the A-axis and C-axis ensure accuracy and stability, while speed is enhanced through the axes' 0.3 second clamp time in any position.

With the machine's gantry concept, the workpiece on the 31.5" x 31.5" table is fully accessible without rotating the table. This helps eliminate errors related to table rotation and avoids the need for hand polishing. The toolchanger for the machine is also located so as to avoid moving the table during tool changes.

"GF Machining Solutions' Machine and Spindle Protection (MSP) adds security to the machining process by protecting the machine and spindle against crashing during setup and machining. MSP eliminates the spindle damage, misaligned machine geometry, downtime and costs related to unexpected spindle crashes," said the spokesperson.

The MILL P 800 U ST is automation ready and equipped with pallet changers for two, seven, nine or 12 pallets. It can also be easily integrated into existing automation systems, including System 3R automation solutions.

For more information contact:

Gisbert Ledvon

GF Machining Solutions

560 Bond St.

Lincolnshire, IL 60069-4224

800-CTC-1EDM / 847-913-5300

gisbert.ledvon@georgfischer.com

www.gfms.com/us
