Portable Battery-Powered Marking Gun



100% Portable and Self-Powered

Well-balanced, weighing in at less than 3 kg and featuring an ergonomic grip, e-mark is designed to be comfortable to hold and operate. It comes complete with a powerful 18 V Li-ion battery that can hold its charge for up to 4 hours under normal use (500 markings) and an extra battery so that users never run out of power. In addition, e-mark comes with a special case for convenient storage and transport between job sites.

Accurate Marking

Featuring a 60 mm x 25 mm marking window and a tungsten carbide stylus, e-mark quickly indents alphanumeric text, logos and Data Matrix codes directly onto substrates ranging from plastic to the toughest metals. The optional front-end support makes it possible to mark areas that were previously inaccessible.

Intuitive and Easy to Use

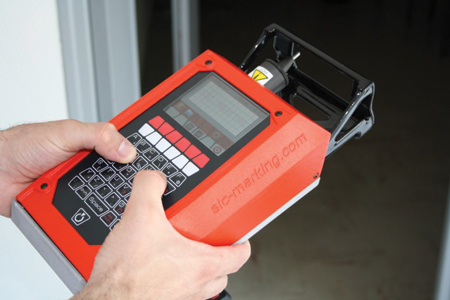

The e-mark software features icon-driven menus and the top-mounted keypad is designed to makes entering characters easy and fast. Simply hold the gun on both sides with both hands and press the keys with your thumbs. The marking window measures 60 mm x 25 mm. The screen is configured so that the marking displayed is at the same scale as the marking to be indented and provides a better visual preview of the programming line. E-mark also features a software interface for managing files from a PC. Adjusting the stylus/part distance for flawless marking results is designed to take no time at all due to the ultrafast-locking adjustment knob.

Designed for Industrial Applications

The e-mark marking gun features a cast aluminum body for the best weight/strength ratio and a membrane keypad. It has no cables that can present shock or trip hazards.

For more information contact:

SIC Marking USA

3812 William Flynn Hwy.

Allison Park, PA 15101

412-487-1165

info@sicmarkingusa.com

www.sic-marking.com
