With the new generation of the marking tools, BZ-Marker, an easy change of the marking pin is possible. Using pliers the marking pin can be easily pulled out and changed. It is no longer necessary to send the marking tool to the manufacturer to change the marking pin.

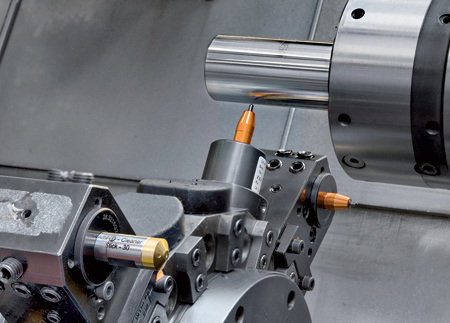

"The BZ-Marker is a cost-effective marking tool for a CNC machining center to generate a durable marking on many different kinds of materials," said a company spokesperson. It is possible to seat this marking tool into a collet or a Weldon toolholder and integrate it directly into the machine spindle of a CNC machining center. The marking speed is aligned with the speed of the machining center.
"Due to the high quality guiding of the tool, uneven and raw surfaces can be marked with, for example, a serial number without any problems. A stepless adjustment, depending on the material hardness and the requested marking depth, is possible," said the spokesperson.
"Compared with the marking process utilizing a milling tool in the CNC machining center, the marking times can be reduced by 75% when using the BZ-Marker. The marking pin does also have a very long lifetime," said the spokesperson.

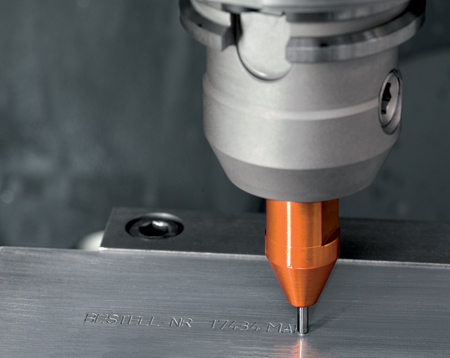

To generate the required markings, the marking tool is pressed into the material and drawn through according to the programmed font. The material will be compressed at the position of the marking and will not be weakened or damaged. No noise will occur with this marking method.
Depending on the material and the required marking depth manufacturers can choose between four different tool sizes: S, M, L and XL.
