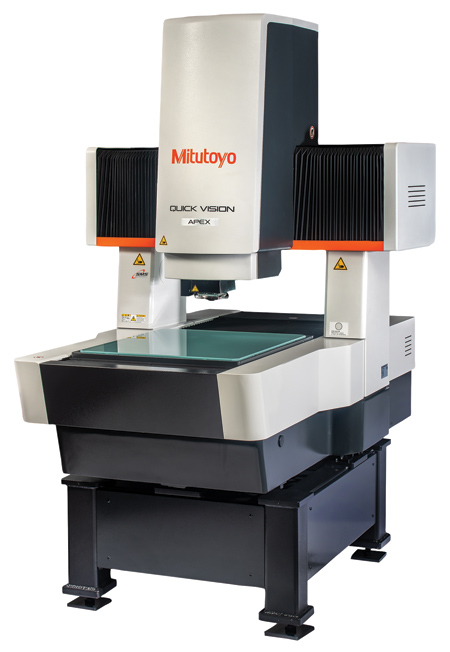

Quick Vision Pro Series

Mitutoyo America Corporation offers the , the latest generation of Mitutoyo Vision Measurement Systems.

" machines are packed with high-performance technologies that greatly improve 3D noncontact measurement and productivity. This highly advanced noncontact measuring system delivers even more speed, efficiency and versatility to the Mitutoyo Vision Measurement line," said a company spokesperson.

The QV Pro Series features newly developed StrobeSnap vision measuring function that speeds up run time by approximately 35 to 45% regardless of measurement position or continuity while achieving higher throughput and high-precision measurements. Auto focus on the QV Pro Series is about 39% faster without loss of accuracy.

An optional Stream function provides high throughput using nonstop measurements that synchronizes the main XY unit drive and strobe lighting. Stream takes images intermittently without stopping the stage and performs batch measurements at the same time, improving measurement speeds.

Optional Tracking Auto Focus (TAF) utilizes a laser tracker that will keep the part in focus while moving the joystick, eliminating the need to keep manually focusing on the part if it is not flat. When a part program is running, TAF keeps the part in focus, so the program does not have to stop for auto focus and stops potential errors from occurring if the part is out of focus. TAF cuts speed measurement times by approximately 30%, further improving throughput while maintaining high accuracy.

 All the QV Pro Series machines can be retrofit with Stream capability, Red, Green, Blue (RGB) illumination systems and side-mounted touch probe kits.

For more information contact:

Mitutoyo America Corporation

965 Corporate Blvd.

Aurora, IL 60502

630-820-9666 / 888-648-8869

www.mitutoyo.com
