New Insert Size for Indexable Milling Line
March 1, 2023

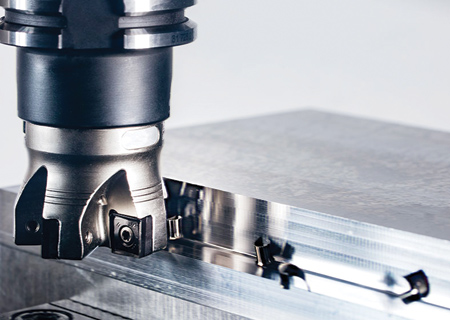

For maximum productivity and machining application versatility, CERATIZIT offers a range of tooling systems within its expansive Indexable Milling line of products that includes the company's new MaxiMill 491. With eight usable cutting edges per newly expanded 9 mm insert size, a precise 90° profile and a durable nickel-coated tool body, the MaxiMill 491 system is suited for all shoulder and full-slot milling applications, the company reported.
"The MaxiMill 491 system provides exceptional ease of use, allowing users to quickly exchange inserts while the tool remains in the machine," said a company spokesperson. "This capability significantly reduces machine downtime while the precision-ground inserts deliver stable and smooth cutting due to CERATIZIT's state-of-the-art Dragonskin coating technology. Plus, the Dragonskin coating gives the inserts added strength for even the most demanding of machining conditions."
Configured with a positive insert geometry, the MaxiMill 491 is engineered to provide higher surface quality and increased tool life. The tool's eight usable insert cutting edges also provide a low price per edge for cost effectiveness.
CERATIZIT initially launched the MaxiMill 491 in a 12 mm size with a nominal diameter range from 32 mm to 160 mm and a corner radius of 0.8 mm. The company extended the range with the addition of 1.2 mm, 1.6 mm and 2.0 mm corner radii. The new 9 mm insert size now brings even greater flexibility for all applications.
With this smaller size, more inserts can be mounted in the tools for longer tool life and higher chip removal rates. The new size also reduces power consumption, making the MaxiMill 491 effective for use with lower power machine tools.
For more information contact:
CERATIZIT USA, Inc.
2050 Mitchell Blvd.
Schaumburg, IL 60193
800-783-2280
www.ceratizit.com
