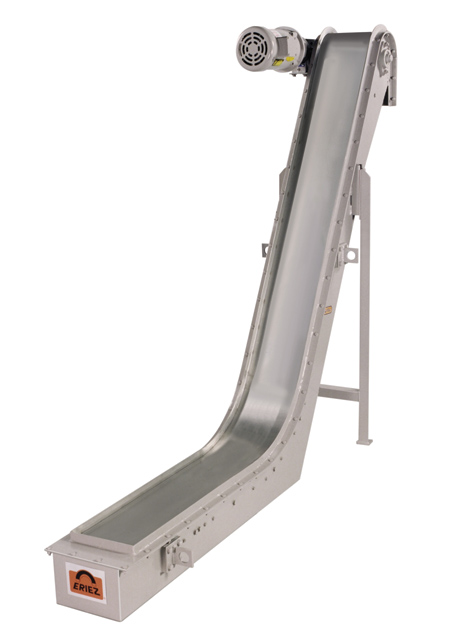

Chip and Parts Conveyors

Permanent Magnetic from Eriez are designed to safely and reliably move and elevate ferrous materials such as chips, turnings, small parts and stampings. "These units are practically maintenance free and innovatively designed to ensure the highest level of operator safety," said a company spokesperson.

Four frame sizes are available with four to five standard slider bed widths. For restricted areas under smaller machines, or where a relatively small volume of material is to be moved, the Model 6, measuring only 6-1/4" (159 mm) deep, is ideal. For larger areas and greater volumes, the Model 9 conveyor, 9-1/4" (235 mm) deep, is recommended.

The Model 12, which is 12-1/4" (311 mm) deep, provides the magnet power and large surface area to continuously remove large quantities of ferrous materials. Where exceptionally large quantities of chips are involved (up to 10 tons per hour) the 21-1/4" (540 mm) deep Model 21 is recommended.

Eriez' Tuf-Trac drive system is featured on conveyor models 6, 9 and 12. The drive chain rides in an oil impregnated Ultra High Molecular Weight (UHMW) track designed to operate quietly and maximize conveyor life. Tuf-Trac eliminates the need for oil inside the conveyor housing.

Besides an externally mounted drive motor, Eriez are self-contained, with a conveyor mechanism that is completely enclosed.

For more information contact:

Eriez Manufacturing Co.

2200 Asbury Road

Erie, PA 16506

800-345-4946 / 814-835-6000
