Cool Touch Laser Marking for Delicate Substrates

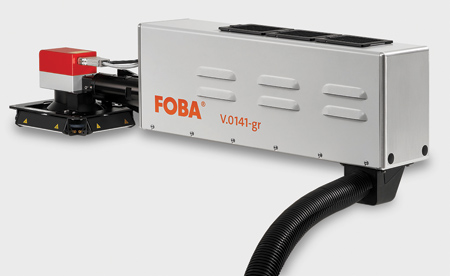

The green laser marking system FOBA Y.0141-gr is a 532 nm wavelength laser system with a vanadate source and 14-watt laser power.

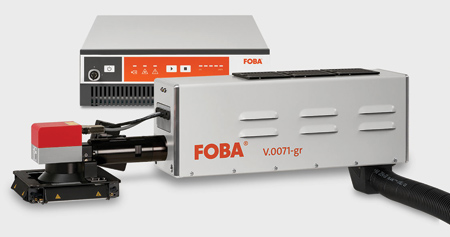

FOBA V.0071-gr 7-watt laser marking system is classified laser protection class 4 and must be equipped with a housing or integrated into a marking unit.

FOBA has developed a 532 nm wavelength green laser marking system that offers new possibilities for industrial direct part marking.

"Supplemented by FOBA's comprehensive marking workflow, the low heat laser applies perfect marks on materials with extraordinary absorption properties," said a company spokesperson. Such materials include white, transparent or red plastics as well as highly reflective metals. The green laser completes the range of laser wavelengths in FOBA's portfolio of marking systems.

An increase in marking speed and marking quality on previously insufficiently markable materials are the main benefits of FOBA's green laser. Affected materials include special plastics like UHMWPE, HDPE or PMMA for which additives might no longer be necessary, as well as glass or shiny substrates. "Compared to other laser types like UV or fiber, the green laser shows better marking results while achieving superior marking speeds," said the spokesperson.

The application of the green laser marker can be facilitated using FOBA's laser marking workflow with camera and mark alignment software. "The optical part inspection and validation of marked contents as well as the automated and precise positioning of the laser mark have long been valued by our customers as a reliable and safe workflow solution," said Philipp Febel, Director Product Management at FOBA. "Our green laser can easily be equipped with various laser alignment tools and works with any of the available FOBA user interfaces."

The FOBA V.0071-gr and FOBA V.0141-gr green laser marking systems close the gap between UV (355 nm) and fiber (1,064 nm) laser markers. The combination of relatively high laser power and a vanadate source enables extended applicability and high speed.

The marking laser is available with either 7- or 14-watt laser power variations. It can flexibly be integrated into production environments due to a smaller marking unit (compared to the UV-laser), a range of available interfaces and five possible marking field sizes.

For more information contact:

FOBA Products Application and

Service Center

Videojet Technologies Inc.

1500 Mittel Blvd.

Wood Dale, IL 60191-1072

630-694-3243

fobasupport@fobalaser.com

sales-na@fobalaser.com

www.fobalaser.com
