Tool Grinding Machine with 16-Station Wheel Changer

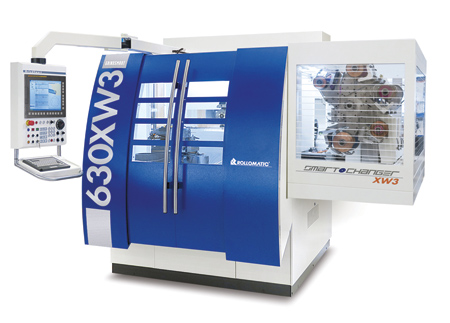

GrindSmart 6-axis tool grinding machine with 16-station wheel and nozzle changer

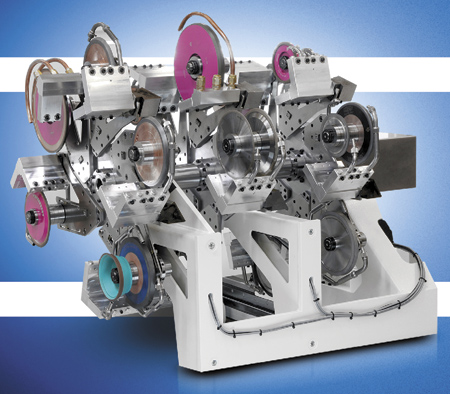

16-station wheel and nozzle changer

Rollomatic offers the 630XW3 6-axis CNC tool grinding with a 16-station wheel changer. This model is part of the GrindSmart series of tool and cutter grinding machines with an axis configuration that incorporate six fully interpolated axes (three rotary and three linear). The machine also incorporates linear axis drive technology.

Highlights include:

  • Simultaneous change of wheel packs and associated coolant manifolds with coolant nozzles
  • The 16-station wheel changer features a small footprint (only adds 30" to the width of the machine).
  • Tool unload/load happens simultaneously during wheel change to shorten cycle time.
  • Embedded intelligence to keep frequently used wheel packs in front to shorten cycle time
  • The wheel arbors are HSK-type with a proprietary attachment design that guarantees less than .00005" TIR over the life of the grinding spindle.
  • Allows high productivity in small-batch grinding of complex and high-performance cutting tools
  • Enhanced autonomy
  • Uses Rollomatic's VGPro desk top tool design program
  • Machines are assembled under a lean manufacturing program.

For more information contact:

Rollomatic Inc. USA

1295 Armour Blvd.

Mundelein, IL 60060

847-281-8550

solutions@rollomaticusa.com

www.rollomaticusa.com
