Expanded Line of TiNox-Cut End Mills

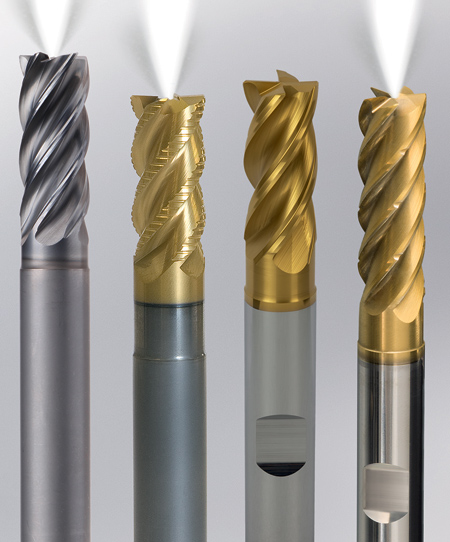

EMUGE-FRANKEN has expanded the TiNox-Cut End Mills line, which is designed for high-performance machining of demanding materials such as Inconel/nickel alloys, titanium and stainless steel found in aerospace and other challenging applications. Four TiNox-Cut End Mill series are now offered, including the 5-Flute N, NF, Base and Trochoidal tools.

The 5-Flute TiNox-Cut N is a coolant fed series that features five flutes for high feedrates, a raised land that increases chip clearance and is ALCR-coated. It is a high-performance tool designed for roughing and finishing, and is especially suited for materials such as titanium and titanium alloys.

The TiNox-Cut NF high-performance series features a fine chip breaker design that reduces chip size while reducing cutting forces. The tool features a proprietary TiN/TiALN coating in both coolant-fed and solid designs. The series is suited for semi-finishing difficult materials such as nickel alloys.

The TiNox-Cut Base design is a material specific style tool with a proprietary TiN/TiALN coating for roughing and finishing. It is suited for stainless and acid-resistant steels.

The TiNox-Cut Trochoidal series, designed for high metal removal rates, features a newly developed geometry, a proprietary TiN/TiALN coating and a chip breaker edge. The combined features are designed to reduce stress and vibration when machining difficult materials such as titanium and stainless steel. All tools are coolant-fed for maximum performance. Designed for trochoidal milling via the overlapping movement of circular paths, these tools can rough and finish mill over 30% faster than standard designs while significantly increasing tool life, according to the company.

EMUGE-FRANKEN TiNox-Cut End Mills are made from fine micro grain solid carbide with a maximized transverse rupture strength for high impact applications. Advanced PVD-applied multi-layered coatings withstand excessive heat and provide increased wear resistance for longer tool life, and tool geometry is designed to produce minimal vibration when machining tough materials.

TiNox-Cut N, NF and Trochoidal End Mills are available in axial internal coolant-through capability for maximum chip evacuation and cooling ability. TiNox-Cut N and TiNox-Cut Trochoidal tools are available in both square-end and corner radius configurations. Weldon flat shank construction is available in both TiNox-Cut NF and TiNox-Cut Trochoidal tools. They are compatible with Emuge FPC Milling Chucks featuring an anti-pullout pin lock system. Overall, the expanded line includes tools that are available in inch sizes ranging from 1/4" to 1" in diameter in stub, standard, long and extra-long lengths.

For more information contact:

EMUGE-FRANKEN USA

1800 Century Drive

West Boylston, MA 01583

800-323-3013

www.emuge.com/products/end-mills/tinox-cut
