BAAM Used to Produce Monolithic Multi-Material 3D Printed Object

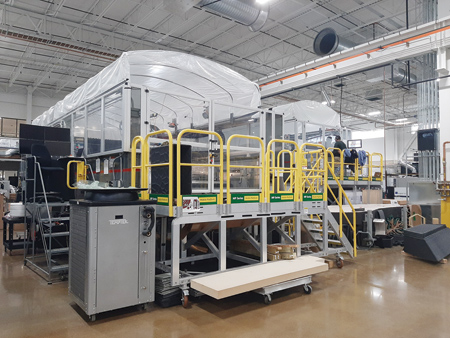

Cincinnati Incorporated (CI), a build-to-order machine tool manufacturer, announced that it has used its Big Area Additive Manufacturing (BAAM) machine to demonstrate that recycled materials can be used for 3D printing by producing one of the largest monolithic multi-material objects to date.

The demonstration successfully proved that large-scale multi-material printing can be done effectively and economically with recycled composite materials.

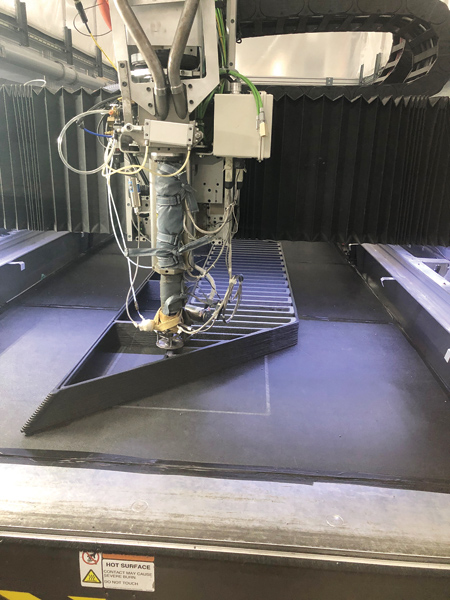

The large-scale multi-material print was achieved by making modifications to the BAAM and including a new extruder design that accommodates a dual feed system.

For the past several years, CI has collaborated with the U.S. Department of Energy's Oak Ridge National Laboratory to continuously improve and develop BAAM technology. Initial research focused on large-scale printing of single material systems, typically short fiber reinforced polymers.

"The objective of this particular study was to demonstrate printing of a multi-material composites tool including transitions, exceeding 10 feet in length, containing recycled material and printed without manual intervention," said Alex Riestenberg, CI's Additive Manufacturing Product Manager.

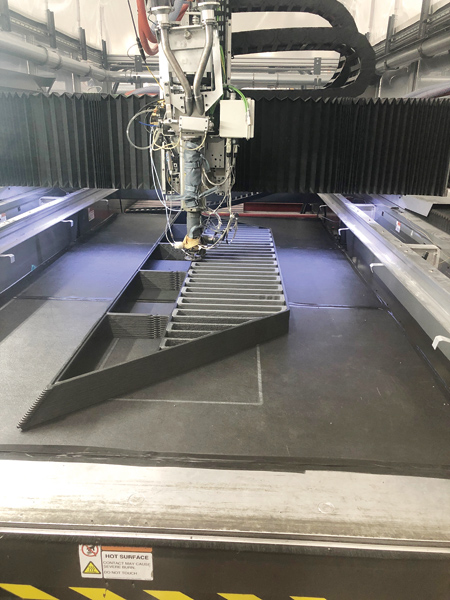

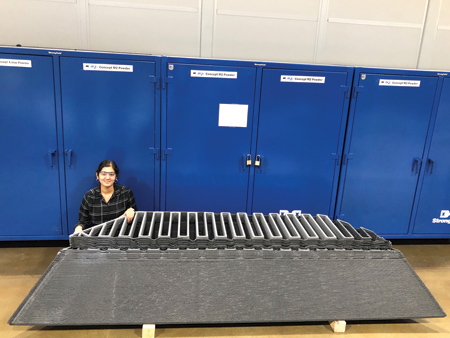

The part selected for this demonstration was a single facet of a precast concrete tool used in the production of commercial window panels for a high-rise development in New York City. The mold weighed approximately 400 lbs., with a length of 10'10". Print time was approximately seven hours.

"Studies have shown that by using multiple materials within a structure, new mechanical responses and multi-functionality can be achieved-such as light-weight structures with tailored mechanical properties, soft and rigid segments within a part and impact resistant structures," said ORNL materials scientist Vidya Kishore.

The two materials used in the build were a blend containing 100% recycled CF/ABS and standard CF/ABS and ABS Syntactic foam.

Besides the ecological benefits of using recycled materials, the advantages of multi-material extrusion include incorporating conductive circuit printing for smart structures, light-weight core structures, lower costs for tooling, easier removal of support material, localized reinforcement of specific areas, the capability to use different materials in different features on the component, and even changing the color of the part.

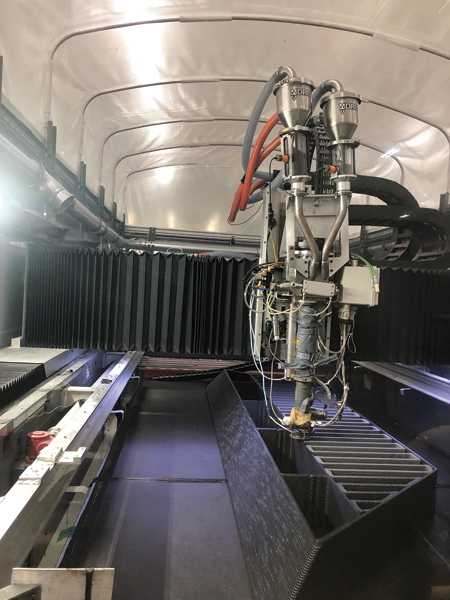

The key to the accomplishment of the goals outlined above was the BAAM Multi-Material system, developed in conjunction with ORNL. The large dual-material thermoplastic extrusion system allows the user to print with multiple different materials within a single build using just one extruder.

"The source of material fed into the extruder is switched on the fly at specific times during a print by sliding two material ports back and forth over the infeed to the extruder," said Riestenberg. "The system also includes a material blender outside the frame of the machine that can blend specific amounts of different materials and fillers on the fly for specific custom material grades."

Riestenberg explained that the combination of the material feed switching mechanism and the material blender gives users the ability to print with several different types of materials and material combinations within a single build, instead of two.

"The BAAM with a multi-material system upgrade is the only machine that can currently do this, and that sets us apart from our competitors," said Riestenberg. "With the scientific research support of DoE's Advanced Manufacturing Office and ORNL, we have been able to achieve this manufacturing milestone."

For more information contact:

Cincinnati Incorporated

7420 Kilby Road

Harrison, OH 45030-8915

513-367-7100

info@e-ci.com

www.e-ci.com/baam
