Single Table Version 5-Axis Machining Center

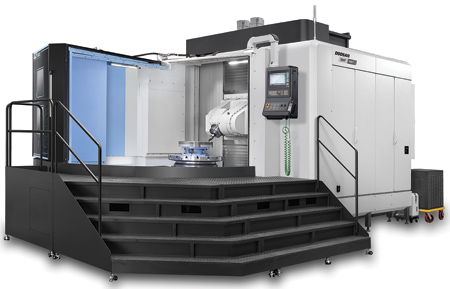

Doosan Machine Tools offers the DHF 8000ST, a single table version of the DHF 8000 5-axis horizontal machining center. This model incorporates a turning function and was designed without a pallet changer to offer a smaller footprint.

Customers from two industry segments were influential in the development of the DHF 8000ST. The first was heavy equipment manufacturers (earthmovers, etc.) who machine large diameter gearboxes that require turning operations. The second group were companies, such as those found in the oil field industry, that also machine large diameter components.

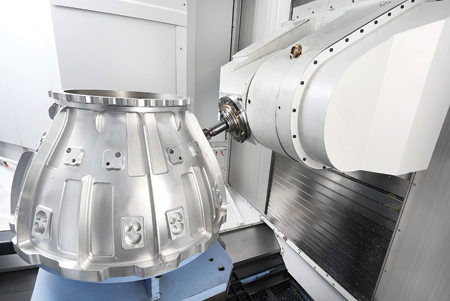

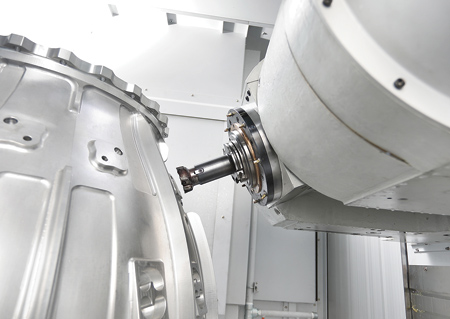

The nodding head spindle and direct-drive B-axis rotary table allow the DHF 8000ST to handle a complete range of machining and turning processes from roughing to finishing in a single set-up. This ability to approach parts from all sides provides increased parts accuracy. In addition, the configuration makes quick work of multi-face workpieces and the 5-axis simultaneous machining of complex shapes.

Like the DHF 8000, the nodding head spindle has a stroke of +60° to -100° (up/down) with clamping torque of over 3,600 ft-lbs. The DHF 8000ST comes with a 47 HP HSK100-T spindle taper with a 6,000 RPM gear head spindle, and optional 15,000 RPM high-speed spindles are also available.

This scaled-up HMC can support workpieces weighing up to two tons, allowing them to be machined with the same precision as their smaller counterparts. A 1,000 mm (39.4") diameter pallet offers a bigger work envelope from the previous model, and its large working area can readily hold parts up to o1,600mm (62.9") diameter x 1,400mm (55.1") in height.

The DHF 8000ST is constructed with cross roller linear guideways for extra rigidity. The Y- and Z-axis are fitted with dual ball screws to provide greater structural stability and accuracy, while the column is designed with high static and dynamic rigidity to provide optimum machining performance. Linear scales on each axis maintain positioning accuracy.

A thermal compensation system, consisting of sensors strategically placed within critical areas of the machine, is monitored and compensates if thermal growth is detected. Cooling systems for the spindle and ball screws also assist with thermal stability. A 120-tool magazine comes standard, which is expandable to 376 tools. The DHF 8000ST comes equipped with a Siemens 840D control.

"The outstanding flexibility of the DHF 8000ST comes at a very competitive price," said Jim Shiner, Director of Sales and Marketing at Doosan Machine Tools America. "The turning function even makes it possible to replace stand-alone turning centers in the shop, saving on capital expenditures as well as floor space."
