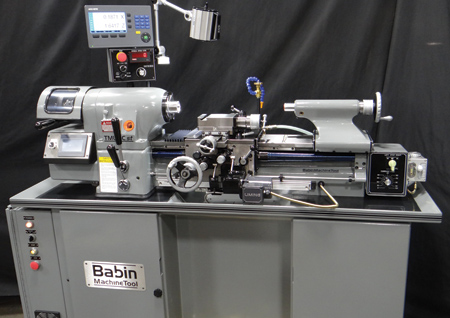

Precision 5C Toolroom Lathe with Servo Threading System

Babin Machine Tool announces the availability of its high precision 5C style toolroom lathe, model TML-5Cst with U.S. made servo threading system.

Designed for the modeling and low production shop environments, features of the TML-5Cst lathe are a Hardinge style wide dovetail bedplate design, direct drive 5 HP spindle to 3,500 RPM, 5C lever collet closer and high precision .0001" toolroom accuracy.

Manual threading is made easy using a color touchscreen for data entry of threading information. No gearbox maintenance, knob settings or external gearing are required.

A wide range of metric (.1 mm to 6.35 mm) or traditional English pitch (4 TPI to 250 TPI) are standard as is the ability to program up to four multi-start thread leads and LH threading.

Options include Acu-Rite or Newall DRO system, chucks, collets and toolpost with tooling. All lathes are delivered from the Babin Machine Tool facility and each TML-5C lathe is fully qualified for accuracy, fit and finish before delivery to the customer.

For more information contact:

Babin Machine Tool

14 Upland Road

Brockton, MA 02301


EASTEC 2021 Booth 1640
