High-Feed Milling Series for Narrow and Long-Reach Applications

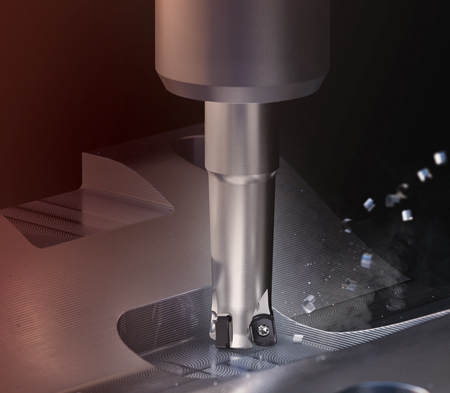

The YG-1 ENMX High-Feed Mill 4 series was developed to meet the requirements of versatility, productivity and process stability for today's applications. These types of tools are commonly used in mold & die, power generation and a variety of applications and materials in general machining markets. "The YG-1 ENMX High-Feed Mill 4 concept provides the ideal choice for high-feed milling with small-diameter tools," said a company spokesperson.

The spokesperson continued, "The unique thickness of the YG-1 ENMX insert offers a series of benefits. First, YG-1 makes the inserts 20-25% thicker than others on the market. This allows normal flank wear to develop without encroaching on the secondary edge and results in full use of all four edges for a more economical solution."

Greater insert thickness also lends itself to the most stable clamping, ensuring predictable and secure machining and longer tool life in the toughest applications, according to the company. Also, the thicker negative insert has a positive rake angle that improves chip evacuation and reduces machining load.

In addition, YG-1's corner protection design is engineered to enhance rigidity while increasing tool life with the chip-breakers' optimized geometry.

The ENMX cylindrical cutter is available in diameters from 16 mm to 32 mm (0.75" to1.25"). Shell mills are available in 40 mm to 50 mm (1.5" to 2") diameters.

For more information contact:

YG-1 Tool Co.

730 Corporate Woods Parkway

Vernon Hills, IL 60061

800-765-8665

techsupport@yg1usa.com

www.yg1usa.com
