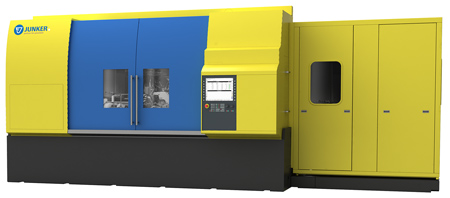

JUNKER combines the individual machining steps for rotor pairs, whether pre-assembled or cast, in a single machine. "Complete machining on the JUMAT 6L 40-30 shortens auxiliary process times, reduces the operating workload, improves quality and increases the efficiency of the end product. Air and gas compressors, expanders and vacuum and ?uid pumps use the rotor pairs," said a company spokesperson. The JUMAT 6L 40-30 grinds rotors with a length from 200 mm to 650 mm and a swing diameter of up to 190 mm.

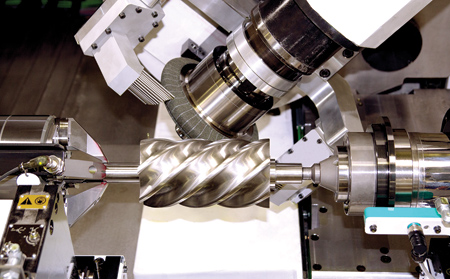

The rotor grinding machine processes and measures the workpieces and compensates for deviations from the nominal geometry-all in a single machine. "The resulting repeat accuracy means that the rotor pairs are perfectly coordinated," said the spokesperson. The grinding operations comprise rough grinding the profile, grinding the outer diameter and ?at shoulders in a QUICKPOINT process, and finishing the screw profile. Subsequently brushing the workpiece in the same clamping set-up is an additional option.
The wheelheads for QUICKPOINT and profile grinding include an integrated, automatic, dynamic balancing system and a proximity sensor. "The JUNKER quality hallmarks for which the company is known are also present in the new machine concept in elements such as the sophisticated operating concept and highly stable machine bed," said the spokesperson.
Due to the fully automatic tool changer with up to 20 different tools and inclusive, independent data management, the machine operator no longer needs to manually fit and remove the tools for profile grinding (including the associated cooling and rinsing nozzles) during the retooling process.
The machine concept comes equipped with a 3D scanning measurement process that determines corrections without the need for an external measuring machine and optimizes the machining parameters in a single work step. "The end result is a stable, enclosed process that leads to significantly better grinding results with current profile shape accuracies of +/-3 µm in practice," said the spokesperson.
The machine can execute a range of simulations in advance, for example the dressing path and the corresponding diamond wheel geometry as well as the effect of changes to the grinding wheel profile on the workpiece.
"Other rotor grinding machines measure the profile and gradient progression of an already-ground workpiece after the workpiece arrives at a measuring machine," said the spokesperson. "The corrections determined on the basis of the measurement protocol are then read in so the workpiece can be ground again. This process repeats until the desired result is achieved-a quite costly and time-consuming process that the JUNKER machine renders unnecessary."
"The new profile scan process by JUNKER, in contrast, makes it far quicker to perform the grinding, measuring and correcting steps in a single clamping process," continued the spokesperson. "In addition, users can save valuable time since the ceramic-bonded CBN grinding wheel is correspondingly dressed and the workpiece is ground again without requiring another clamping process. Scanning the gradient progressions directly into the machine makes it possible to compensate for and correct errors in concentricity, infeed and outfeed."

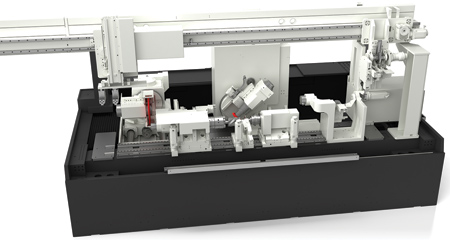

The machine concept is rounded off by a fully integrated internal loading gantry, which takes on the task of frictionless workpiece handling within the machine and the option to transfer the finished parts outside the machine. The loading gantry can be easily retooled for a new workpiece configuration using the quick-release fastener.
For more information contact:
Erwin Junker Machinery, Inc.
2541 Technology Drive, #410
Elgin, IL 60124
847-488-0406
info@junker-usa.com
www.junker-group.com
