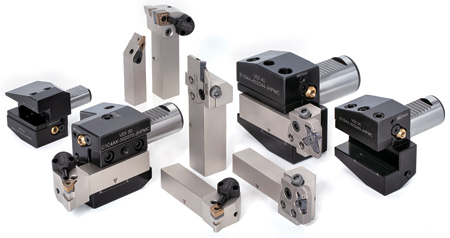

Expanded High-Pressure Coolant Turning Tool System



Tungaloy has expanded its TungTurn-Jet solution, a high-pressure coolant turning tool system, to include coolant-through toolholders and PSC/VDI (DIN69880) adapters. This combination eliminates the need for hoses, fittings and spare parts that are commonly needed for coolant-through tooling.

"The TungTurn-Jet system strategically directs the internal coolant jet to an optimal position, close to the cutting point on the insert rake face," said a company spokesperson. "This provides effective chip control, especially during the machining of exotic materials, which is not the case with conventional external coolant supply methods. The holder also feeds the other coolant jet from the bottom to minimize flank wear for increased insert life and productivity."

The TungTurn-Jet holder uses internal channels in the toolholder to deliver coolant supplied directly from the machine turret through the holder out to the nozzle, streamlining tool handling and set-up for reduced machine downtime. "Since there is no need for conventional external hoses to be set up, chip bird-nesting on the hoses are a thing of the past," said the spokesperson. The latest additions to the TungTurn-Jet system include TungModular system holders for grooving, parting and thread turning, as well as ISO external turning holders.

For more information contact:

Tungaloy America, Inc.

3726 N. Ventura Dr.

Arlington Heights, IL 60004

888-554-8394

info@tungaloyamerica.com

www.tungaloyamerica.com
