Innovative Wedge Clamps

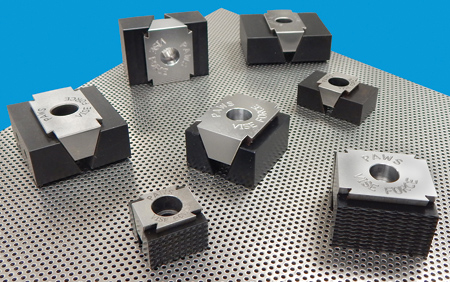

Vise Force Wedge Clamps from Fixtureworks are suitable for clamping multiple workpieces with a small footprint on the fixture plate.

Fixtureworks, a supplier of clamps, vises, fixturing accessories, machine tool and material handling products, has added Vise Force wedge clamps from Paws Workholding to its extensive lineup of manual clamps and workholding solutions.

Vise Force wedge clamps provide a fast and flexible workholding solution and are suitable for clamping multiple workpieces. The clamps are fastened with one bolt, making them ideal for quick set-up and part changing. These universal fixturing clamps can be used to hold a variety of materials including steel, brass, aluminum, plastic and more.

The Vise Force wedge clamps are designed to fit between two workpieces so parts can be ganged together for machining. They thrust the workpiece against a stop and prevent movement on the fastening base. They provide high clamping pressure and taking up little space on the fastening base.

The innovative internal return spring prevents chip buildup and allows for a closer placement of multiple clamps. The low profile dovetail design improves machining process by reducing movement, vibration and chatter.

The Vise Force wedge clamps are available in 1.0", 1.5" and 2" jaw widths and with smooth, serrated and machinable clamping surfaces. The clamps are tightened with one 5/16-18 SHCS. Machinable jaws are soft and oversized for custom machining the jaws to an application.

In addition to the Vise Force wedge clamps, Fixtureworks offers Fairlane Products' full line of grippers, rest pads, Swivots swivel/pivoting positioning components, quick release ball lock pins, rollers and bumpers; Imao One Touch Clamps, One Touch Fasteners, supports and stops, grid plates and blocks; Kipp machine tool components; OML vises, tombstones and APS zero-point system; and the Modern Industries SpeedLoc product line.

For more information contact:

Fixtureworks

33792 Doreka Drive

Fraser, MI 48026

888-794-8687 /586-294-1188

info@fixtureworks.net

www.fixtureworks.net
