Soft Blank Jaws Provide for Consistent Part Clamping

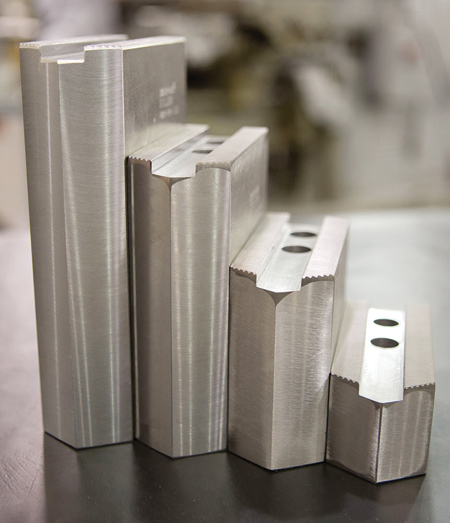

Soft jaw blanks from Dillon Jaws are supplied in standard sizes, are easy to order and feature a milled surface on the jaw end, providing an established surface aiding in positive serration alignment with the front edge of the jaw. This datum serves as a location point for positioning the counter-bored holes and the jaws' serrations resulting in exact dimensional matching of Dillon jaw sets. These features reduce set-up times, aid concentric performance, provide better chuck balance and have a longer jaw life because of the increased jaw accuracies. Featuring established surfaces in relation to the jaw serrations, Dillon Chuck Jaws perform as a standard workholding component for turned or bored parts.

Dillon Manufacturing offers a full suite of jaws to complete the workholding line-including soft jaws, hard jaws, full grip jaws, collet pad jaws, vise jaws and custom jaws.

Dillon standard and custom chuck jaws and collet pads are suitable for high-speed machining, in addition to precision boring, tapping, drilling and finishing across virtually all industrial markets.

Dillon Manufacturing, Inc. manufactures a complete line of standard and custom workholding solutions including chuck jaws, chucks, vises jaws, soft jaws, hard jaws, collet pad jaw systems, chuck lubrication and more. All products are made in the USA and Dillon is ISO 9001:2015 registered.

For more information contact:

Joseph Shouvlin

Dillon Manufacturing, Inc.

2115 Progress Drive

Springfield, OH 45505

800-428-1133

sales4@dillonmfg.com

www.dillonmfg.com
