Fully Automatic Circular Cold Saw

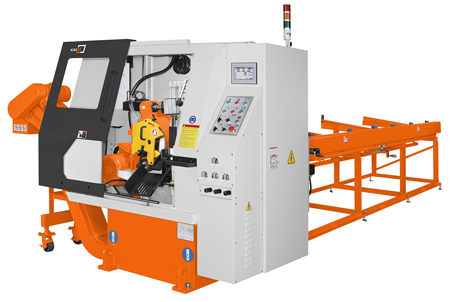

KAAST Machine Tools, Inc. offers a fully automatic NC cold saw in the company's line of circular saws. "The HCS features a rigid design and anti-vibration features, resulting in a cut that is fast, precise, efficient and clean," said a KAAST spokesperson.

The HCS is fast at up to 500 cuts/hour for 2.75" bars, and 400 cuts/hour for 24" clean-cut lengths. The automatic material diameter sensing feature allows fast cycle times. The thin-kerf blade design (0.079") keeps waste at a minimum while increasing efficiency and productivity.

The HCS includes a top vise that keeps the material clamped, allowing bundle cutting for increased throughput. The bar loading magazine can hold 13 pieces of 2.75" x 20" bar with the option to upgrade capacity. The electromagnetic brake and gear transmission are designed to decrease noise, vibration and power consumption for increased blade life and cut quality.

Other standard features for the HCS include an NC control with 7" touchscreen, trim and remnant sorting, fast bar feed (944"/min) and saw blade feed by AC servomotor and ball screw.

For more information contact:

KAAST Machine Tools, Inc.

3 Merion Terrace

Aldan, PA 19018
