Clamping Shaft Collars, Rigid Couplings Permit Precision Mounting
February 1, 2019

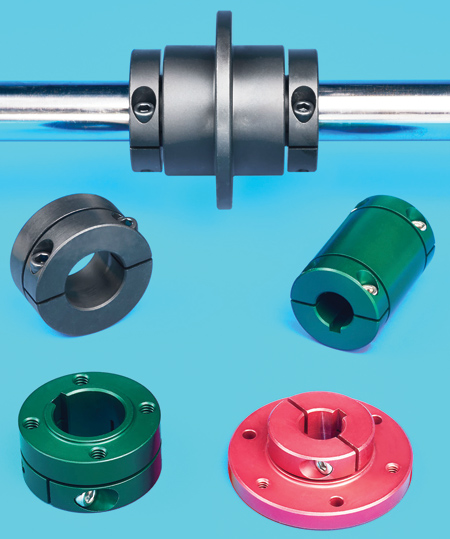

A full line of shaft collars, mounting collars and sleeve couplings designed to provide accurate working surfaces and mar-free clamping has been introduced by Stafford Manufacturing Corp.
Stafford Accu-Clamp Shaft Collars feature an integral clamp on one side while leaving the other flat and perpendicular within 0.001" TIR to permit mounting next to precision bearings, sprockets and gears. For mounting components, Accu-Mount and Accu-Flange collars have a centering hub with predrilled and tapped holes on their flat side and flange.
Stafford Accu-Clamp Shaft Collars are available made from aluminum, steel and stainless steel in 0.5" to 2" I.D. sizes. A one-piece Precision Sleeve Coupling with a rigid center clamp section and the Accu-Clamp feature at each end is offered for a distortion-free coupling with a more precise fit and shaft-to-shaft concentricity within 0.001" TIR.
For more information contact:
Stafford Manufacturing Corp.
P.O. Box 277
North Reading, MA 01864-0277
800-695-5551
sales@staffordmfg.com
www.staffordmfg.com
