Workholding Solution for High Force Applications

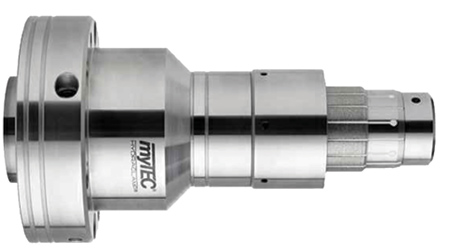

Mytec-Hydraclamp has developed and manufactured high precision, tailor made hydraulic clamping tools for over 30 years and recently introduced its new Perman-System.

"In recent years Mytec-Hydraclamp customers were looking for more loading clearance combined with high accuracy and stability due to the introduction of Industry 4.0, the networking of machines and factory automation. To meet that need Mytec-Hydraclamp developed the hydra-mechanical-based Perman-System," said a company spokesperson.

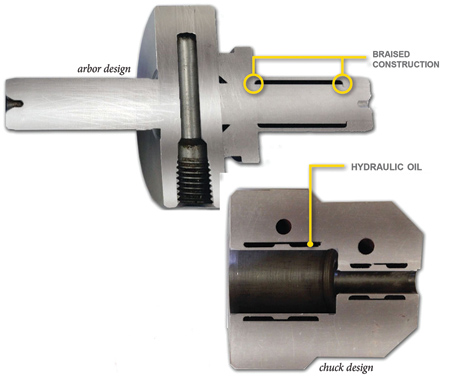

The MECHANICAL clamping tool is directly actuated with the drawbar of the machine or permanent with springs while the HYDRA-MECHANICAL clamping tool is actuated directly by the hydraulic system of the machine.

The technical advantages are:

  • High loading clearance
  • Runout accuracy <0.005 mm (0.0002")
  • High gripping force
  • Pull-back function (axial clamping force)
  • Modular design, collet interchangeable (quick change).

Euro-Tech Corporation is the North American distributor of the Mytec-Hydraclamp product line.

For more information contact:

Euro-Tech Corporation

N48 W14170 Hampton Avenue

Menomonee Falls, WI 53051

262-781-6777

info@eurotechcorp.com

www.eurotechcorp.com
