Parker T-Slot Aluminum Design Architect Tool

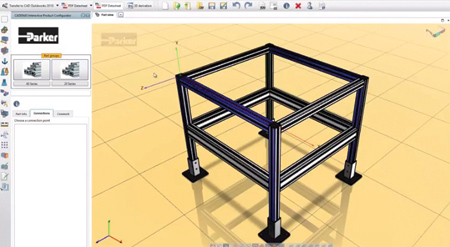

Parker's Electromechanical and Drives Division North America has announced the release of the Parker T-Slot Aluminum Design Architect, which enables users of any skill level to quickly and easily design products from Parker T-slot aluminum framing components. It is available as a free download on the Parker website

"The software takes the challenging task of designing products from T-slot aluminum and makes it as simple as building with snap-together blocks," said a company spokesperson.

"Parker's T-slot aluminum framing is the material of choice for assembling an unlimited variety of bases, frames, linear slide systems, safety guarding, enclosures, worktables, material handling systems and other structures," said a company spokesperson. "The modular T-slot aluminum profile system offers so much flexibility and cost savings in engineering, fabrication and assembly that it has become the preferred material for a multitude of applications."

Formerly, to design a product with T-slot aluminum, engineers would create the various profiles, connectors, fasteners and accessories within their CAD system. They would then create their design by manipulating each component. Upon completion, they would manually create a bill-of-materials and send to Parker for a quote. If the user did not have CAD access they would often send Parker a "napkin sketch," for the Parker engineering team to interpret, design and quote. This would often require three to five iterations, taking time and effort for the customer and the Parker team.

"It is so easy anyone can do it," said Mario Mitchell, Parker's T-Slot Aluminum Framing Product Manager. "The entire process has been streamlined and simplified with the end-user in mind. This simple, standalone system requires no CAD access or previous engineering experience; users download and start creating in minutes. Designs will be more accurate the first time and iterate much faster. One of my favorite features is how all of the fasteners and connectors are automatically generated for the design and everything is added to the BOM. When they are finished designing, users can email the BOM to us and we can get a price quote right back to them."

While no CAD access or experience is required to use the tool, there are advanced features and outputs that will appeal to professional engineers and systems integrators, including .stp files and native CAD output to Dassault SolidWorks, Autodesk Inventor and PTC CREO.

"There are some powerful features that will really appeal to pro users," said Jay Hopper, COO of CADENAS PARTsolutions. "For engineers who are integrating their Parker T-slot aluminum assembly into a larger design, they can instantly export projects from the T-slot aluminum design architect to their CAD application. If they are looking to share the design with a purchasing department, they can instantly generate a 3-D PDF cut sheet, with all of the details for their specific design."

The Parker-Hannifin T-Slot Aluminum Design Architect is available as a free download at parker.com/ipsor parker.com/designarchitect.

For more information contact:

Parker Hannifin Corporation

SSD Drives Division

9225 Forsyth Park Dr.

Charlotte, NC 28273

704-588-3246

info.us.ssd@parker.com

www.parker.com
