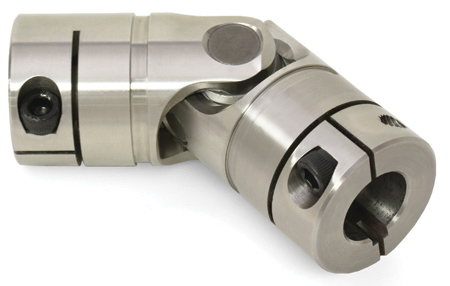

Clamp style universal joints are available in single friction-bearing style with bore sizes from 1/4" to 1-1/4" in steel for high torque, or stainless steel for improved corrosion resistance
Ruland Manufacturing Co., Inc. offers clamp style universal joints, providing designers a standard, off-the-shelf solution that eliminates common issues associated with set screw or pin options.
The new clamp style universal joints offer easy installation, adjustability and suitability for all shaft types. "Universal joints are traditionally supplied with set screws to affix directly to the shaft or plain bores to be pinned into the shaft," said a company spokesperson. "These attachment methods cause marring on the shaft and burrs that can potentially transfer from the shaft into the system, which may be undesirable when the universal joint is used in food, medical, robotics or other industrial systems."
Clamp style universal joints further the partnership between Ruland and Belden Universal, which supplies Ruland with the base universal joint. Ruland is known for having the highest-performing clamping technology in its shaft collars, rigid couplings and motion control couplings. Belden manufacturing processes include precision machining, selective heat treating and utilizing ground components for tighter tolerances, better performance and longer lifespan.
"We are a leading clamp technology manufacturer," said Bill Hewitson, President of Ruland. "This latest addition to our universal joint product line expands our reach in cutting-edge medical, semiconductor and robotics industries. Our world-class design, manufacturing and unmatched customer service commitment ensure customers get the highest-performing clamp style universal joints in two weeks or less."
The clamp-style universal joints come with Ruland's Nypatch anti-vibration hardware, preventing screws from loosening or backing out during operation. Nypatch is a proprietary process that involves depositing a 360° coating of Nylon on several threads of the socket head-cap screws. The universal joints can be combined with a boot to protect the joint from contaminants in the operating environment. The boot can be packed with grease for infinite life, reducing maintenance on the universal joint and leading to more machine uptime.
Clamp style universal joints are available in single friction bearing style with bore sizes from 1/4" to 1-1/4" in steel for high torque or stainless steel for improved corrosion resistance. Ruland manufactures the clamp feature, bores and keyways in Ruland's factory in Marlborough, MA. Belden Universal manufactures the universal joint in its factory in Hillside, IL. Clamp style universal joints are available via Ruland's website or through McMaster-Carr.
For more information contact:
Ruland Manufacturing Co., Inc.
6 Hayes Memorial Drive
Marlborough, MA 01752
508-485-1000 / 800-225-4234
sales@ruland.com
www.ruland.com
